2 Piece Wras Approved Hytork Actuated Ball Valves

Subtotal	£0.00

The Hytork XL Actuator is engineered with exceptional mechanical strength to endure heavy loads even in the face of external forces like shocks or impacts. It is perfectly suited for demanding environments such as mining or construction sites, offering long-lasting durability. Using WRAS approved valves helps show that the fittings on your site meet the Water Supply (Water Fittings) Regulations. This empowers you to fully harness the capabilities of your system. The bi-directional travel stops simplify the adjustment of valve stroke, preventing premature valve failures. Our Pneumatic Actuators can integrate with commonly used auxiliary components such as solenoid valves, position switches, gauges, and pressure regulators.

Shop Help Me

Key features and benefits of BV-L4500XL Actuated Ball Valves.

Key Features

An economical alternative to subpar standard quarter-turn pneumatic actuators, this option offers a more cost-effective ownership experience while delivering precise high-speed actuation. It can serve as a standalone unit or integrate into intelligent automated assembly lines.

Key Features

Our products are meticulously crafted by engineers who possess a deep understanding of their functionality in real-world scenarios. They are engineered to withstand shocks, vibrations, and demanding applications while operating efficiently, thereby reducing energy consumption costs for end-users.

Key Features

BallValve ensures rapid turnaround times without compromising on quality or expertise. Additionally, every order includes a two-page test report that meticulously documents the opening and closing times of each tested valve. Whether you require a single product or a large quantity of off-the-shelf components, we are equipped to meet your needs.

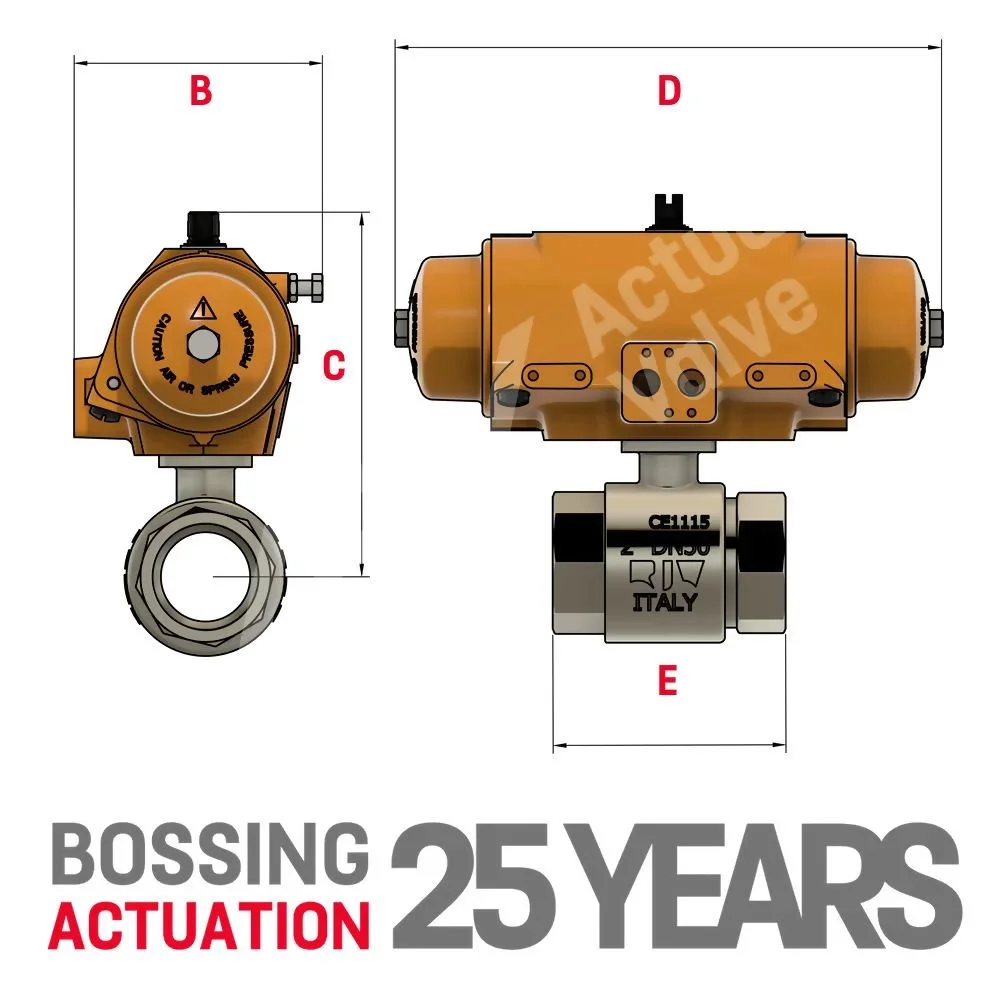

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	97.00	135.50	165.00	97.00	135.50	165.00	59.00
3/4"	97.00	141.50	165.00	97.00	141.50	165.00	69.00
1"	97.00	145.50	165.00	97.00	145.50	165.00	83.00
1 1/4"	116.50	168.90	221.80	97.00	151.00	165.00	94.00
1 1/2"	116.50	180.40	221.80	116.50	180.40	221.80	102.00
2"	116.50	187.90	221.80	116.50	187.90	221.80	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

In the UK, water fittings connected to the public supply must comply with the Water Supply (Water Fittings) Regulations, or the Scottish Water Byelaws in Scotland. WRAS approval is not a legal requirement, but it is a widely recognised way of showing that a product has been tested against those requirements. This approval serves as evidence that our products have undergone testing by an independent body to ensure they meet all the necessary standards and requirements established by the government. The AV4500 is a Ball Valve that has received WRAS approval and is suitable for use with drinking water.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	Brass CW 617 N
Seats Material:	PTFE
Shaft Material:	Brass CW 614 N
O-Rings Material:	Viton
Ball Material:	Brass CW 617 N
Approvals:	Wras approved
Mounting:	ISO 5211 Connection
End Connections:	BSPP
Pressure Rating:	PN40

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Hytork Actuator Videos

Hytork Overview

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
