Carbon Steel PN40 Elomatic Actuated Ball Valves

EL-O-Matic Pneumatic Actuators feature sturdy springs and precise engineering, ensuring a reliable fail-safe mechanism crucial for secure plant operations. Choose EL-O-Matic for both quality and safety assurance. The BV-L6NC0-EL DIN PN40 ball valves deliver high-pressure, full-flow performance, accommodating up to a 6-inch bore size. These valves can be installed between various pipeline flanges and hold approvals from DNV, SIL 2, Lloyds Register, and Nace MR-0175. Additional options include a ball with relief holes and a high-temperature spindle extension for insulation and steam actuation. We offer express shipping for in-stock components, guaranteeing delivery within 24-48 hours.
Shop Help Me

Key Features

Key features and benefits of the BV-L6NC0-EL Actuated Ball Valves.
1

Key Features

Conformity with the NAMUR interface standard enables the actuator to be combined with a diverse array of accessories. This facilitates the seamless integration of the El-O-Matic Pneumatic Actuator into pre-existing systems where components for on-site attachment are already available.
2

Key Features

The BV-L6NC0EL DIN PN40 actuated ball valves ensure high-pressure, full-flow operation with a bore diameter of up to 6 inches.
3

Key Features

El-O-Matic Pneumatically actuated valves find application in various industries such as chemical, oil and gas, pharmaceuticals, water treatment, and more. They offer a rapid response time for opening or closing the flow of media (gases/fluids) through them.

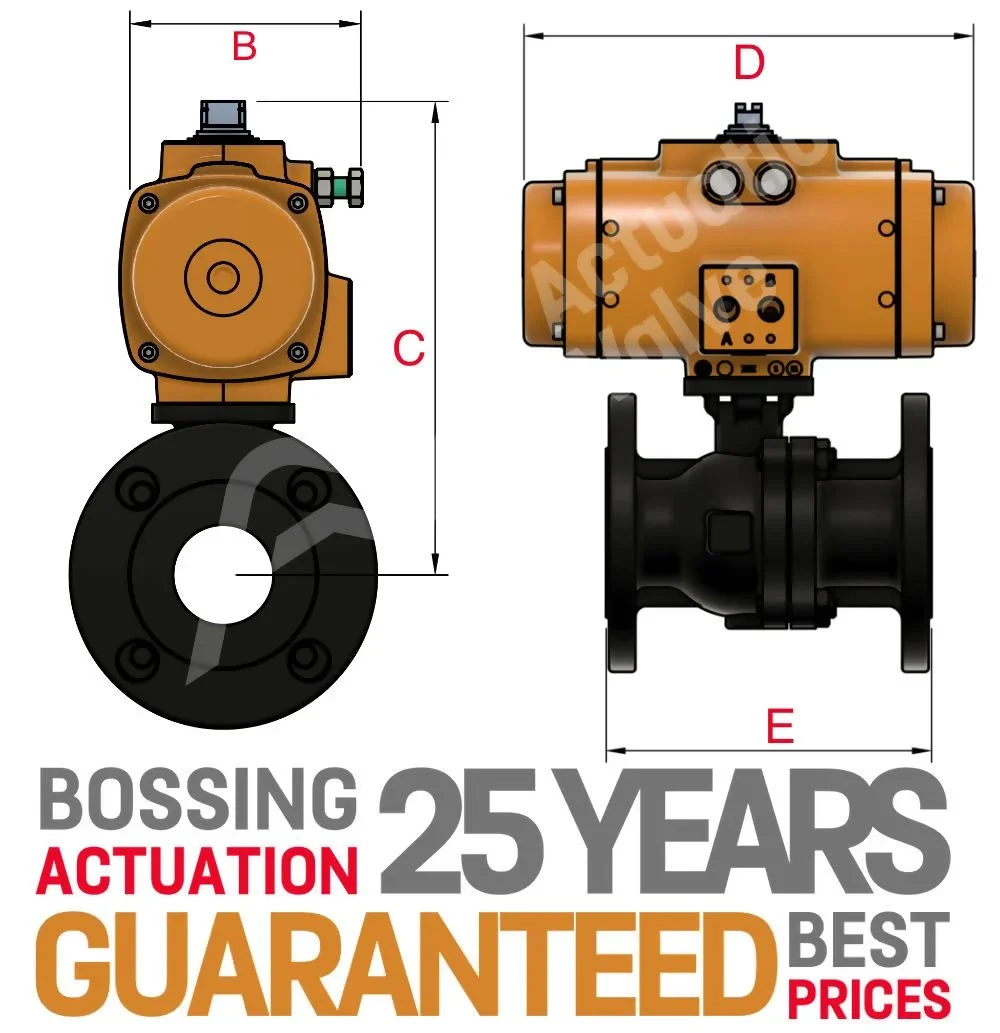

BV-L6NC0-EL Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

BV-L6NC0-EL Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

SMALL Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
  • Size 0100
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
