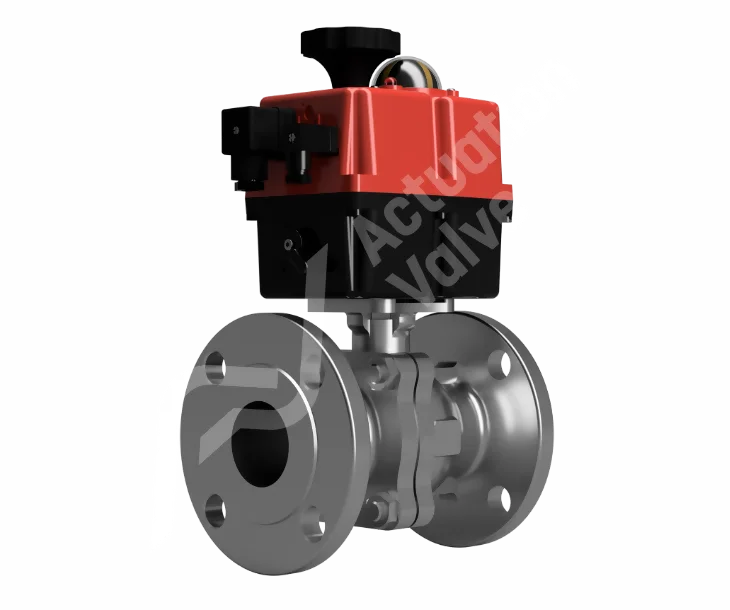

J4CS J&J Electric Actuator Ball Valves SS ANSI 150

By transitioning from traditional ball valves to our low-torque BV-L6100 Ball Valve, you can reduce installation and maintenance expenses while enhancing overall reliability. Our product prioritises the end-user, and we have a deep understanding of what suits industrial automation best. The J&J Electric Valve Actuator includes a sturdy manual override handle, serving as a dependable mechanical backup in case of power failures. This safety feature enables you to switch between open and closed positions until systems or power are restored. WRAS-approved TFM 1600 PTFE seats ensure secure operation, while our FDA-approved materials provide assurance that your products will be handled safely, without compromising quality or performance when used correctly.
Shop Help Me

Key Features

Key features and benefits of BV-L6100JJ Actuated Ball Valves.
1

Key Features

This package is an ideal selection for individuals dealing with moderately aggressive water conditions and challenging external environments. It has been meticulously designed, employing only high-quality materials from the manufacturer Kingdom Controls.
2

Key Features

The J&J J4CS electric valve actuators are engineered with a 75% duty rating and have been attested for their reliability by numerous customers worldwide. Thanks to ongoing research and development, these actuators are accompanied by a 3-year, 60,000-cycle warranty.
3

Key Features

J&J Electric's DPS Kits present an excellent choice for applications demanding precise control of valves. The digital positioner enables accurate fine-tuning of valve operation, and the kit is compatible with both S and B model actuators.

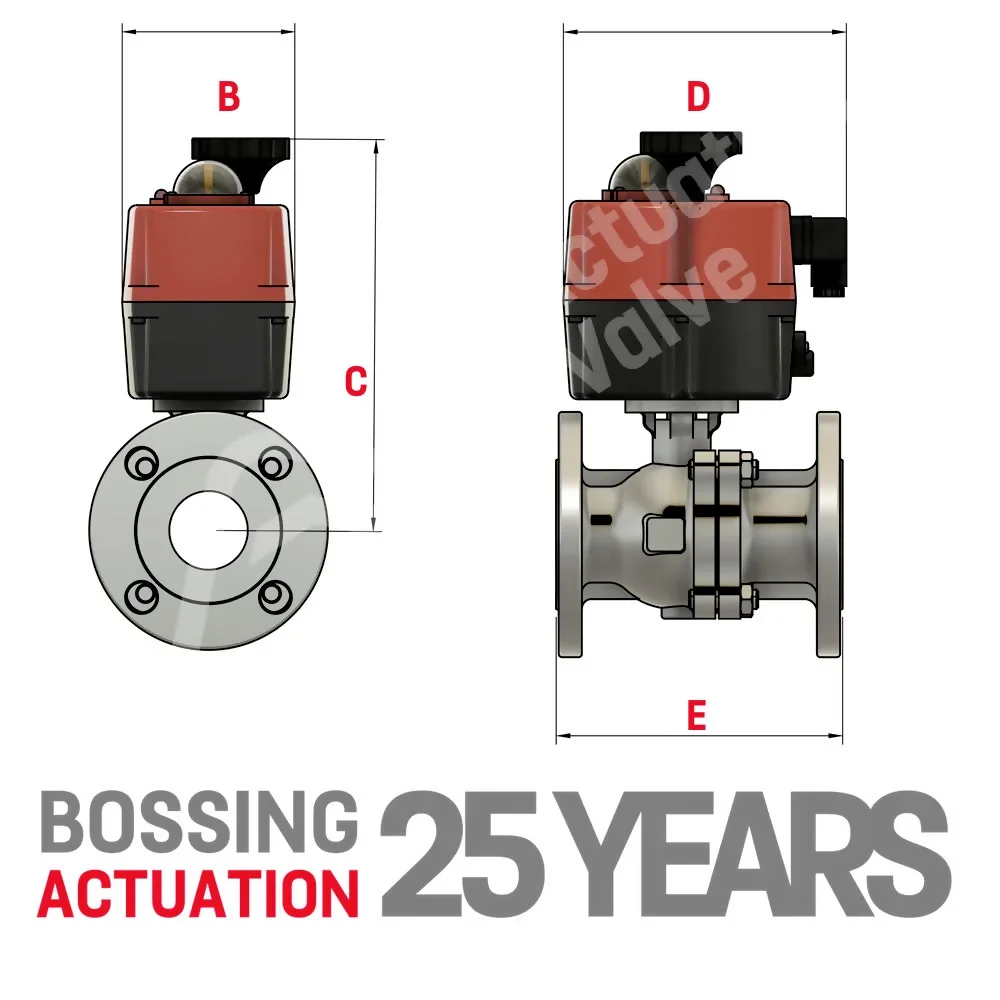

Flanged ANSI 150 Technical Data

B C D E Model
1/2" 110.00 220.00 179.00 108.00 J4CS20
3/4" 110.00 224.00 179.00 117.00 J4CS20
1" 110.00 230.00 179.00 127.00 J4CS20
1 1/4" 110.00 242.00 179.00 140.00 J4CS20
1 1/2" 110.00 247.00 179.00 165.00 J4CS35
2" 110.00 278.00 181.00 178.00 J4CS55
2 1/2" 110.00 298.00 181.00 190.00 J4CS85
3" 214.00 366.00 235.00 203.00 J4CS140
4" 214.00 394.00 235.00 229.00 J4CS140
5" 214.00 437.00 235.00 356.00 J4CS300
6" TBA TBA TBA TBA TBA

Flanged ANSI 150 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
