The BV-L6NC0-AT DIN PN40 actuated ball valves offer robust high-pressure, full-flow functionality with a bore diameter of up to 6 inches. These actuated ball valves come with connections that facilitate installation between two different flanges within a pipeline. They have received valve approvals from DNV, SIL 2, Lloyds Register, and NACE MR-0175. You can also choose from additional ball valve features, including an upstream and cavity relief hole drilled into the ball, as well as a high-temperature spindle extension for insulation and steam-driven operation. If you need stock components, we provide express shipping for delivery within 24-48 hours.

Shop Help Me

Key features and benefits of the BV-L6NC0-AT Actuated Ball Valves.

Key Features

The primary visual cue is an integral component of a patented design by an Italian manufacturer, enabling users to effortlessly adjust the top cap to different angles. This design eliminates the need for unnecessary disassembly and reassembly of the actuated valve unit when making adjustments to the setup.

Key Features

Switching from traditional ball valves to our low-torque BV-L6NC0 Ball Valve can lead to cost savings in installation and maintenance, all the while enhancing overall dependability. Our product has been meticulously crafted with the end-user in consideration, and we possess a profound understanding of what proves most effective for industrial automation.

Key Features

The Air Torque Actuator represents a modern pneumatic actuator generation, suitable for the most challenging operational conditions, all while adhering to the most rigorous performance criteria. It is particularly well-suited for tasks necessitating exceptional reliability and extended lifespan without incurring significant expenses.

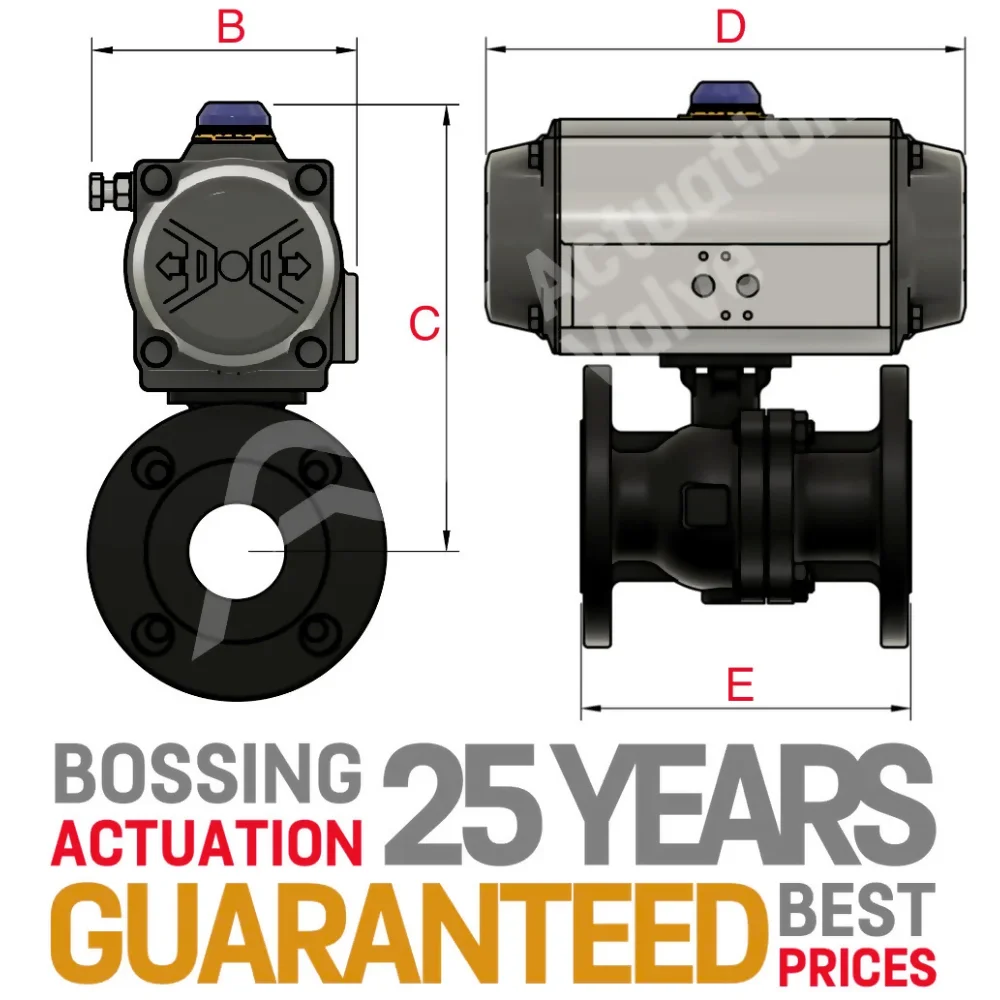

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	72.00	120.00	137.00	72.00	120.00	137.00	59.00
3/4"	72.00	126.00	137.00	72.00	126.00	137.00	69.00
1"	72.00	130.00	137.00	72.00	130.00	137.00	83.00
1 1/4"	93.00	168.50	203.50	72.00	135.50	137.00	94.00
1 1/2"	93.00	180.00	203.50	84.50	163.00	153.50	102.00
2"	106.00	200.50	153.50	84.50	170.50	153.50	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	EN 12516-1
Wall Thickness:	EN 12516-1
Inspection & Testing:	EN 12266-1
Face 2 Face:	DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
