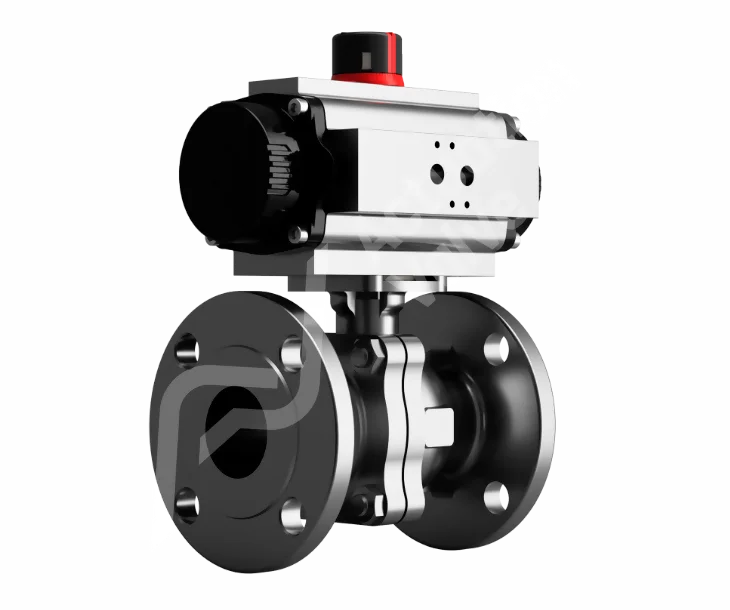

Stainless Steel ANSI 150 Actreg Actuator Valves

BallValve offers rapid turnaround times without compromising quality or expertise. Every order includes a two-page test report that comprehensively outlines the opening and closing times for each tested valve. Whether you require a single product or numerous off-the-shelf components, we can meet your needs. For Actreg actuators, position indicators are available, which can be directly mounted with sensors from respected manufacturers like P&F, IFM, and others, depending on the end user's approved vendor lists (AVL's). We also have position monitoring switch boxes and sensors in stock for quick assembly. Field operation is made easy with distinct end cap designs for both double and single-acting actuators, eliminating the need for labeling or serial code traceability in case of wear or removal. Additionally, our end caps come standard with epoxy coating to shield against environmental corrosion.

Key Features

Key features and benefits of BV-L6100AC Actuated Ball Valves.
1

Key Features

All our Actuated Valve Assemblies are produced in-house with the assistance of automation specialists. Each finished unit is equipped to adhere to stringent quality standards and can be traced through a two-page test report that provides detailed information on opening and closing times.
2

Key Features

The BV-L6100 Ball Valves are free from silicone and are well-suited for applications involving oil-based paint products. This ensures absolute confidence that the valve will not introduce any contamination to the medium, which could potentially impact the final finish. This is very important in the context of car manufacturing.
3

Key Features

Position indicators for the Actreg actuator include the option for direct mounting of Puk sensors like P&F, IFM, and other manufacturers, depending on the end user's approved vendor lists (AVLs). Additionally, position monitoring switch boxes and sensors are readily available in stock for swift assembly.

Flanged ANSI 150 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 81.00 145.00 163.00 108.00 72.00 138.00 145.00 108.00
3/4" 81.00 149.00 163.00 117.00 72.00 142.00 145.00 117.00
1" 96.00 174.00 195.50 127.00 72.00 148.00 158.00 127.00
1 1/4" 96.00 186.00 195.50 140.00 72.00 160.00 158.00 140.00
1 1/2" 116.00 213.00 217.00 165.00 93.00 198.00 177.00 165.00
2" 116.00 219.00 217.00 178.00 93.00 204.00 177.00 178.00
2 1/2" 127.00 249.00 258.00 190.00 93.00 224.00 196.00 190.00
3" 140.00 277.00 299.00 203.00 106.00 247.00 225.00 203.00
4" 157.00 322.00 348.50 229.00 136.00 315.00 273.00 229.00
5" 197.00 404.00 473.50 356.00 166.00 390.00 372.00 356.00
6" 218.00 453.00 560.00 394.00 166.00 411.00 439.00 394.00
8" 248.00 533.00 601.00 457.00 181.00 479.00 461.00 457.00

Flanged ANSI 150 3D Stuff

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

4-20mA Control Available On This Product

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
