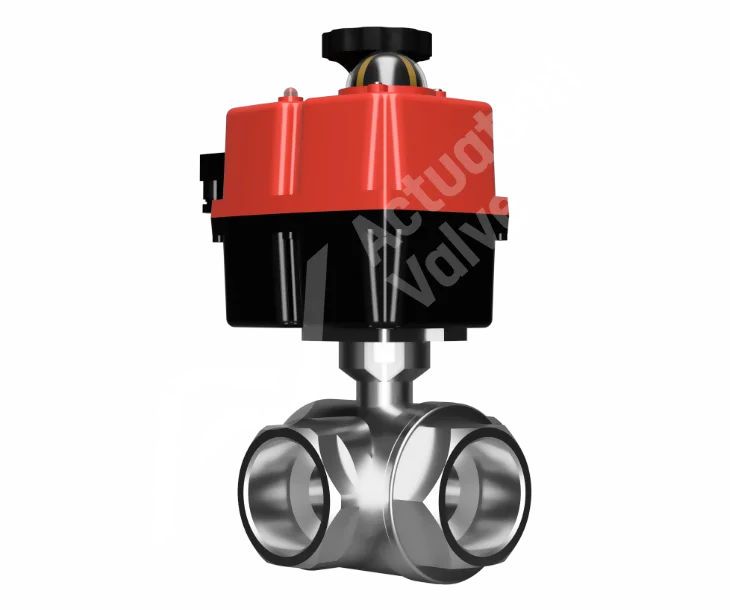

J4CS J&J Electric Actuator 3-Way Reduced Bore Valves

The JJ electric actuators are constructed with robust materials, high-quality components, and advanced technology to ensure long-lasting performance and durability. These actuators offer an economical alternative that reduces downtime and maintenance expenses. The BV-L5000 & 5100 3-Way Ball Valve is designed for Screwed connections, with a stainless steel body that accommodates either an L or T drilled ball configuration. The L port valve features holes drilled at 90-degree angles from two different sides, resembling the shape of an L, while the T configuration includes a hole straight through. The J4S electric actuator comes equipped with Bluetooth communication technology, enabling users to connect directly with any IOS or Android device. This allows for convenient control of actuator and valve operations, including opening, closing, and stopping at the current position.
Shop Help Me

Key Features

Key features and benefits of BV-L5000JJ & BV-L5100JJ Actuated Ball Valves.
1

Key Features

The BV-L5000 & 5100 3-Way Ball Valve comes in two configurations: L Port and T Port. The distinction between the two lies in their functionality. The L Port version can provide complete shutoff, depending on the type of actuator used. In contrast, the T Port configuration offers diversion or continuous flow from one port to another.
2

Key Features

Three-way ball valves are frequently employed to regulate the flow direction of fluids. These valves can be configured as either diverter or selector valves, depending on the specific needs of your application. They are available in both L and T Port configurations, and you can choose between 90-degree or 180-degree actuators for precise control.
3

Key Features

J&J Electric Actuators provide a Modbus connection that allows for convenient on-site integration with existing units, supporting up to a maximum of 32 actuators or valve assemblies. This connection can be established via a local Ethernet connection or over Wi-Fi, covering distances of up to 1600 meters without the need for signal boosting technology.

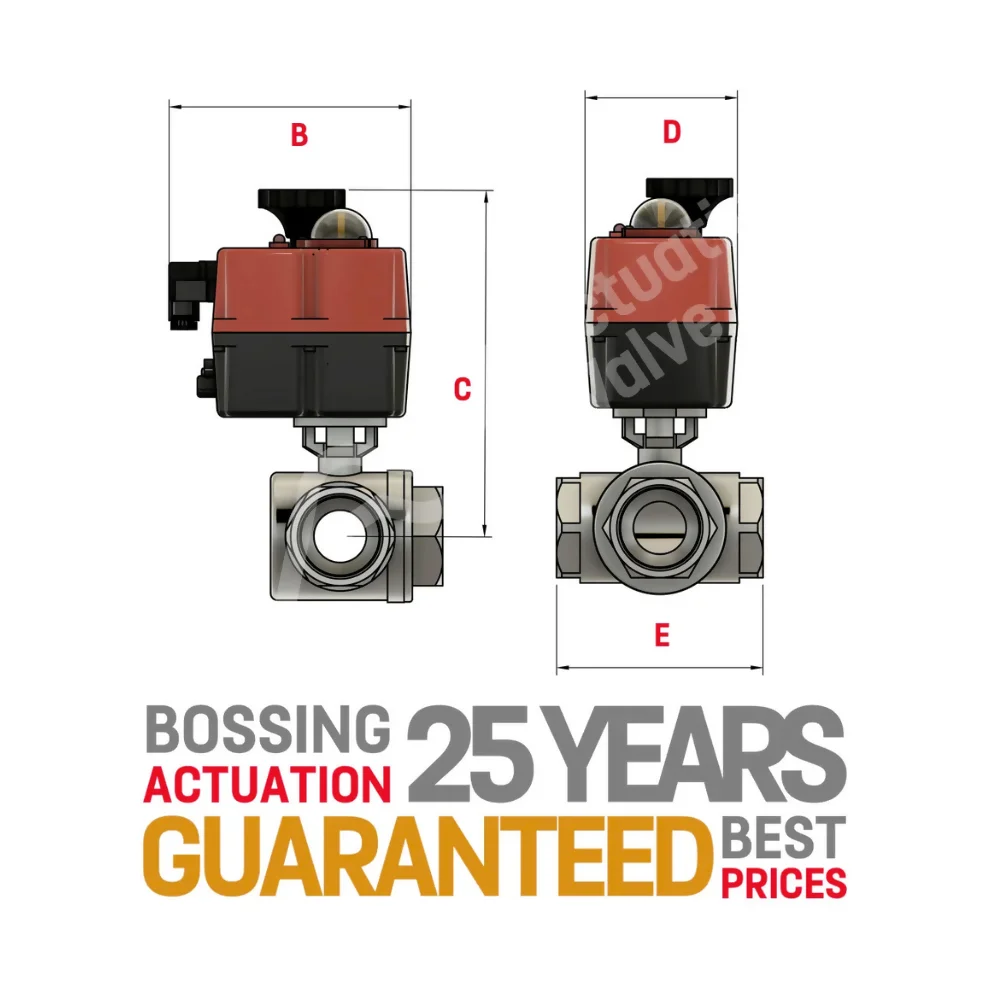

RB 3-Way Ball Valve Technical Data

B C D E Model
1/4" 100.00 153.50 145.00 79.00 J4CS20
3/8" 100.00 153.50 145.00 79.00 J4CS20
1/2" 100.00 153.50 145.00 79.00 J4CS20
3/4" 100.00 159.50 145.00 88.00 J4CS20
1" 100.00 170.00 145.00 108.00 J4CS20
1 1/4" 100.00 173.50 145.00 124.00 J4CS20
1 1/2" 121.90 215.00 117.00 135.00 J4CS35
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Models

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Valve Standards & Specifications
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Yes. Electric actuators can be supplied with a battery backup or spring return module so the valve moves to a safe position on power loss, and pneumatic actuators can be supplied spring return. Tell us the fail position you need when you enquire.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

It depends on the version. Electric actuators normally include open and closed limit switches. For pneumatic valves, choose the switchbox option to add open and closed position feedback. If you are unsure, contact us and we will confirm.

Potentially. Contact us so we can discuss potential options.

Actuators are supplied in the manufacturer's standard finish. If your application needs a special coating, for example for a corrosive or offshore environment, contact us and we will check what the manufacturer can provide.

Yes. Send us the size, connection, pressure and media by email or call 0151 547 1221 and we will quote a suitable valve and actuator package.

Yes. We can ship on a plain label direct to your customer. Send us a copy of your delivery note and we will include it with the consignment.

Please contact our sales team to discuss account and payment options for your business.

On 3 piece valves, yes. This is done by combining end caps from two valves, so the valves are purchased in pairs; we then re-assemble and pressure test the valve before shipping.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3-Way BSPP Reduced Bore J-J Electric Actuated Ball Valves
