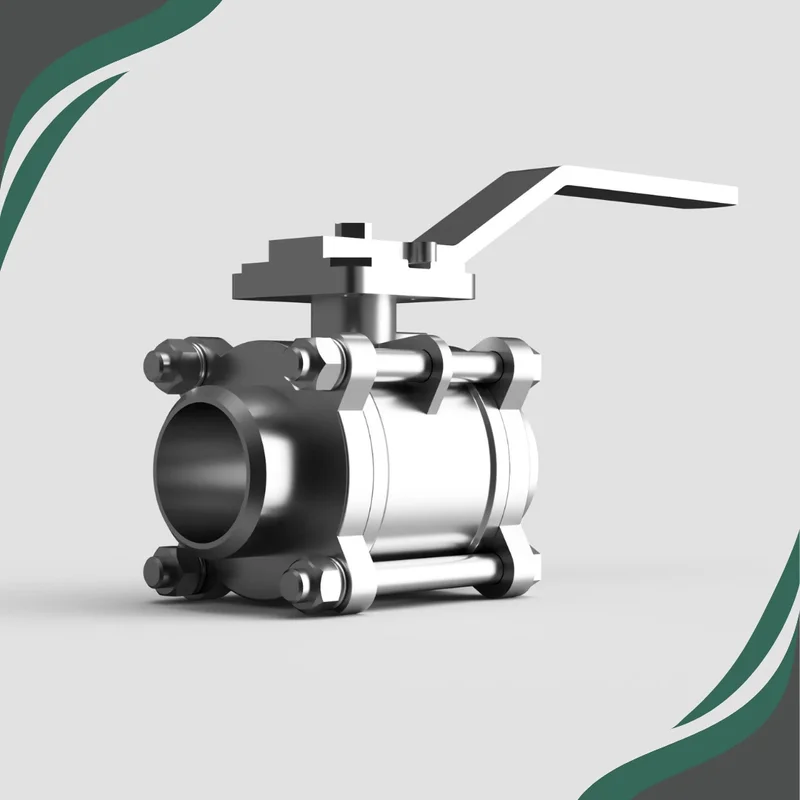

Stainless Steel 3 Piece Ball Valve – Butt Weld Ends
Designed for durability, performance, and clean integration, the Stainless Steel 3 Piece Ball Valve with Butt Weld Ends is a precision-engineered solution ideal for process piping systems requiring a permanent, high-integrity connection. Constructed from ASTM A351 CF8M 316 stainless steel, the valve offers excellent corrosion resistance and strength, making it suitable for applications in pharmaceuticals, food and beverage, chemical processing, and high-purity systems.
This valve features TFM 1600 PTFE ball seats, delivering superior sealing performance, chemical resistance, and thermal stability. With a full port design and smooth internal surfaces, it ensures minimal pressure drop and easy flow of media. The butt weld ends allow for direct welding into pipelines, creating a seamless and leak-proof connection that’s particularly valued in sanitary or high-pressure systems. Built in accordance with MSS SP-110 design and testing standards and compliant with EN 12516-3 wall thickness, this valve is rated for up to 1000 PSI working pressure.
Key Features:
Body Material: ASTM A351 CF8M 316 Stainless Steel – robust and corrosion-resistant for hygienic and industrial applications
Seats: TFM 1600 PTFE – provides exceptional chemical resistance and sealing integrity
Design Standard: MSS SP-110 – ensures consistent quality, safety, and functionality
Wall Thickness: Meets EN 12516-3 – ensuring structural reliability under pressure
Pressure Rating: 1000 PSI – suitable for high-pressure and high-purity systems
Connection Ends: Butt Weld – permanent, secure, and ideal for clean process environments
Serviceability: 3-piece design allows for easy in-line maintenance and component replacement
This stainless steel butt weld ball valve is the go-to choice for process engineers requiring long-term reliability, cleanability, and performance under pressure. Its construction supports both hygienic and industrial applications where welded systems are essential.
