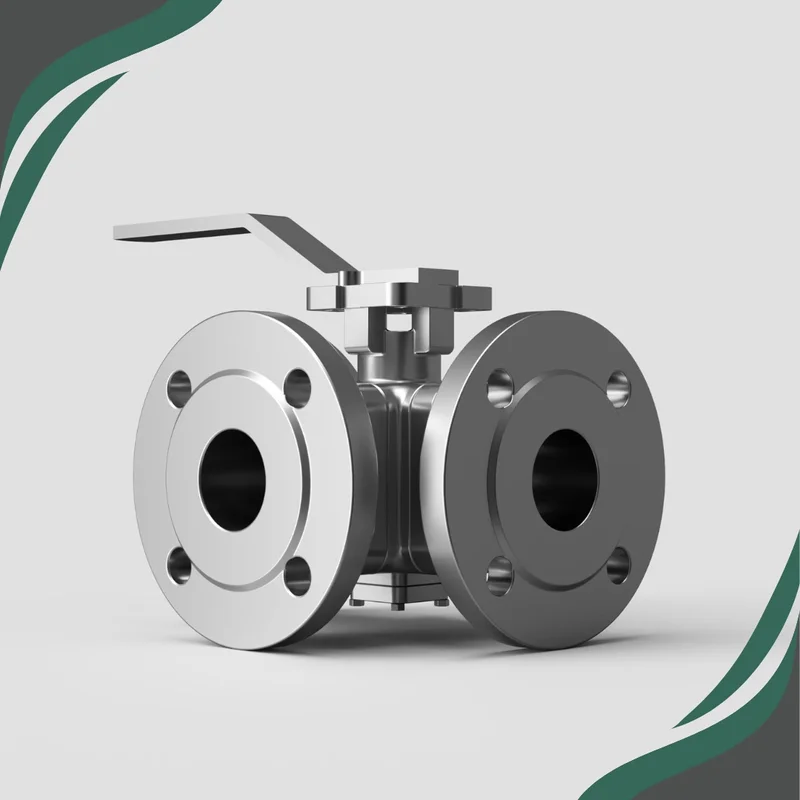

Stainless Steel Flanged 3 Way Full Bore Ball Valve – PN40
Built for high-pressure industrial systems, the Stainless Steel Flanged 3 Way Full Bore Ball Valve – PN40 delivers exceptional durability, flow control versatility, and chemical resistance. Crafted from ASTM A351 CF8M 316 stainless steel, this robust 3 way valve is suited to aggressive media and demanding process environments across industries such as chemical processing, water treatment, steam distribution, and petrochemicals. The full bore design enables unrestricted flow, reducing pressure drop and allowing for efficient fluid transfer and mixing.
With flanged PN40 connections in accordance with EN 1092-1, the valve integrates seamlessly into high-pressure piping systems while maintaining a secure, leak-free seal. Its 3 way configuration (available in L-port or T-port) offers flexible flow paths for diverting or blending applications. TFM 1600 PTFE ball seats provide high chemical resistance and thermal stability, ensuring reliable sealing even under fluctuating process conditions. Manufactured and tested in line with MSS SP-110 standards, this valve is designed for performance, safety, and serviceability.
Key Features:
Body Material: ASTM A351 CF8M 316 Stainless Steel – excellent for corrosive and high-pressure applications
Seats: TFM 1600 PTFE – ensures a tight seal and superior chemical resistance
Design Standard: MSS SP-110 – for consistent quality and mechanical reliability
Connection Type: Flanged PN40 – built to EN 1092-1 for high-pressure system compatibility
Bore Type: Full Bore – allows maximum flow with minimal restriction or turbulence
Flow Configuration: 3 Way (L or T Port) – ideal for flow diversion, mixing, or isolation
Pressure Rating: PN40 – suitable for high-pressure process and utility services
Engineered for longevity and efficiency, this Stainless Steel Flanged 3 Way Ball Valve is the ideal choice when precision, pressure performance, and corrosion resistance are non-negotiable.
