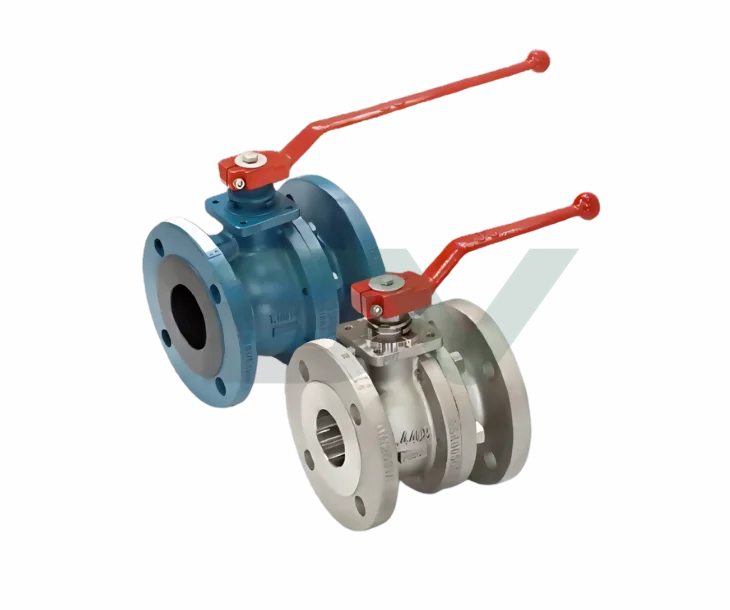

JC Valves 516Q/540Q/316Q/340Q Full Bore Floating DIN Ball Valves

The JC Valves 516Q/540Q/316Q/340Q series consists of full bore floating ball valves designed to meet DIN (Deutsches Institut für Normung) standards, ensuring compatibility with European piping systems. These valves are built for high-flow efficiency with minimal pressure drop, making them ideal for demanding applications in oil and gas, chemical processing, power generation, and steam systems. The floating ball mechanism allows slight movement under pressure, ensuring a reliable seal and reduced operating torque, enhancing both efficiency and durability.
Shop

Key Features

Key features and benefits.
1

Key Features

The full bore construction of the JC 516Q/540Q/316Q/340Q series ensures that fluid flows through the valve with minimal resistance, reducing pressure drop and energy loss.
2

Key Features

The floating ball design allows the ball to move slightly under pressure, ensuring that it forms a tight and secure seal against the valve seat. This results in superior leak prevention and consistent sealing, even in varying pressure conditions.
3

Key Features

The API 607 fire-safe certification ensures that these valves maintain their sealing capability even in the event of extreme heat or fire exposure, preventing hazardous leaks.

Immense Stocks

Powerful Specifications
Size Range: DN15 to DN200 (1/2" to 8")
Valve Design: Full Bore EN 1983
Body Design: EN 12516
Shell Thickness: EN ISO 17292
Flanges: DIN 2501 / EN 1092-1
Face to Face: EN 558 Series 1
Pressure Testing: EN 12266
Certifications: Fire Safe API/ISO, Fugitive Emissions, CE Marking, ATEX, TRCU, FDA, SIL, EN 13774, & More
Applications: Oil & Gas, Chemical, Paper, Energy, Food, Pharmaceutical, Marine, Mining, & More
Weight Range: 2.8 to 111 KG

Why Choose JC?

Advanced Sealing Technologies

Their products feature advanced sealing technologies that improve leak prevention and boost operational efficiency, making them ideal for critical applications in industries such as oil & gas and chemical processing.

High-Performance Materials

JC Valves utilises premium materials, including stainless steel, carbon steel, and special alloys, to deliver exceptional durability and reliability in demanding conditions.

Customisable Options

JC provides customisable valves in a range of sizes, materials, and pressure ratings, enabling clients to tailor products to their specific requirements and operational conditions.

Wide Variety of Valve Types

JC Valves specialises in a wide range of valve types, including ball, gate, globe, and check valves, designed to meet the unique demands of various industrial applications.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Datasheets and Catalogs

  • Document
Datasheets and Catalogs

JC 316Q/340Q Datasheets
  • Document
Datasheets and Catalogs

JC 516Q/540Q Datasheets
  • Document
Datasheets and Catalogs

JC Product Catalog
