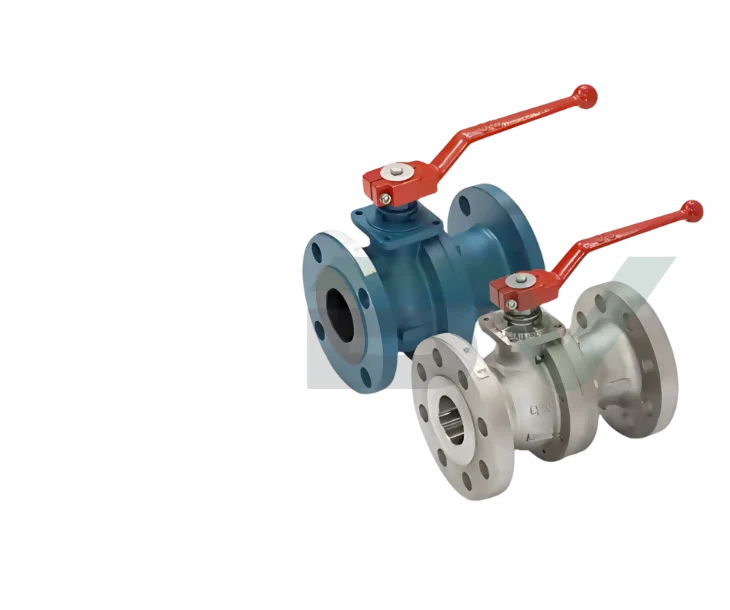

JC Valves 3515/3530 Full Bore Metal Seated Ball Valves

The JC Valves 3515 and 3530 Full Bore Metal Seated Ball Valves are built for high-temperature, high-pressure, and abrasive applications, ensuring superior durability, tight shutoff, and long service life. These metal-seated ball valves are specifically designed for severe industrial environments where soft-seated valves would fail, making them ideal for oil and gas, petrochemical, power generation, mining, and chemical processing industries.
Shop

Key Features

Key features and benefits of JC Valves 3515/3530 Full Bore Metal Seated Ball Valves.
1

Key Features

The hardened metal-seated ball and seats provide superior durability against high temperatures, erosive particles, and corrosive chemicals, ensuring reliable operation in extreme conditions. This design prevents seat deformation, maintains tight shutoff, and extends valve life, even in applications involving steam, hydrocarbons, and slurries.
2

Key Features

The full bore construction ensures unrestricted fluid flow, minimising pressure drop and turbulence for maximum system efficiency. This allows for high-capacity flow with minimal energy loss, making it ideal for industries requiring fast and efficient fluid transfer.
3

Key Features

These valves are designed to handle extreme temperatures up to 800°C (1472°F) and withstand high-pressure applications in oil, gas, and industrial processing. Their robust construction ensures thermal stability, preventing material degradation even under fluctuating operating conditions.

Immense Stocks

Powerful Specifications
Size Range: DN15 to DN200 (1/2" to 8")
Valve Design: Full Bore API 6D
Body Design: ASME VIII Div.1
Shell Thickness: ASME B16.34
Flanges: ASME B16.5 Raised Face
Face to Face: ASME B16.10 Long Pattern
Pressure Testing: API 598 - API 6D
Certifications: API 6D, PED, MSS SP 55, NACE & ISO, Fire-Safe, Fugitive Emissions, & ATEX
Applications: Oil & Gas, Chemical, Paper, Energy, Food, & More
Weight Range: 2 to 155 KG

Why Choose JC?

Advanced Sealing Technologies

Their products feature advanced sealing technologies that improve leak prevention and boost operational efficiency, making them ideal for critical applications in industries such as oil & gas and chemical processing.

High-Performance Materials

JC Valves utilises premium materials, including stainless steel, carbon steel, and special alloys, to deliver exceptional durability and reliability in demanding conditions.

Customisable Options

JC provides customisable valves in a range of sizes, materials, and pressure ratings, enabling clients to tailor products to their specific requirements and operational conditions.

Wide Variety of Valve Types

JC Valves specialises in a wide range of valve types, including ball, gate, globe, and check valves, designed to meet the unique demands of various industrial applications.

Datasheets and Catalogs

  • Document
Datasheets and Catalogs

JC 3515/3530 Datasheets
  • Document
Datasheets and Catalogs

JC Product Catalog

Frequently Asked Questions

JC Valves is a multinational company established in 1968, specialising in the manufacture and sale of high-quality industrial valves. They offer a wide range of valve solutions, including ball valves, for various applications across industries such as oil & gas, chemical, petrochemical, pulp & paper, and energy sectors.

JC Valves provides a comprehensive range of ball valves, including:?

  • Floating Ball Valves: Suitable for lower pressure applications, offering reliable sealing by allowing the ball to float and press against the seat.?
  • Trunnion-Mounted Ball Valves: Designed for high-pressure applications, where the ball is anchored by trunnions, reducing seat wear and operational torque.?
  • Metal-Seated Ball Valves: Ideal for high-temperature and abrasive conditions, providing enhanced durability compared to soft-seated variants.
  • Three-Way Ball Valves: Allowing for flow diversion and mixing, commonly used in process industries requiring versatile flow control.

JC Ball Valves are manufactured using high-quality materials such as:?

  • Carbon Steel: Suitable for general-purpose applications with moderate pressure and temperature requirements.?
  • Stainless Steel: Offering excellent corrosion resistance, ideal for applications involving corrosive fluids or environments.?
  • Special Alloys: Including materials like Inconel and Hastelloy, designed for extreme conditions involving high temperatures, pressures, or corrosive media.

Yes, JC Ball Valves are designed and manufactured to meet or exceed major international standards, including:?

  • API 6D: Specification for pipeline and piping valves.?
  • ISO 17292: Specification for metal ball valves for petroleum, petrochemical, and allied industries.?
  • ASME B16.34: Standards for valves flanged, threaded, and welding end.?

Compliance with these standards ensures reliability, safety, and interoperability in various industrial applications.

Yes, JC offers metal-seated ball valves specifically designed for high-temperature applications, providing enhanced durability and reliable sealing under extreme conditions.

Yes, many JC Ball Valves are equipped with ISO 5211 mounting pads, facilitating easy integration with pneumatic or electric actuators for automated flow control systems.

Yes, JC Ball Valves are designed to meet fire safety standards such as API 6FA and API 607, ensuring operational integrity during fire scenarios.

JC Ball Valves are widely utilized in industries including oil & gas, chemical processing, petrochemical, pulp & paper, energy, and mining, owing to their robust design and reliable performance.?

Yes, JC Valves offers tailored valve solutions to meet specific application requirements, including special materials, configurations, and design modifications.

You can contact JC Valves directly or reach out to authorised distributors for technical support, product selection assistance, and after-sales service.

JC Ball Valves can be purchased through authorised distributors and partners worldwide. For specific inquiries or to locate a distributor, visit the JC Valves website or contact their sales department.

Yes, JC Valves provides maintenance tutorials and resources, including videos and manuals, to assist customers in proper valve maintenance and operation.
