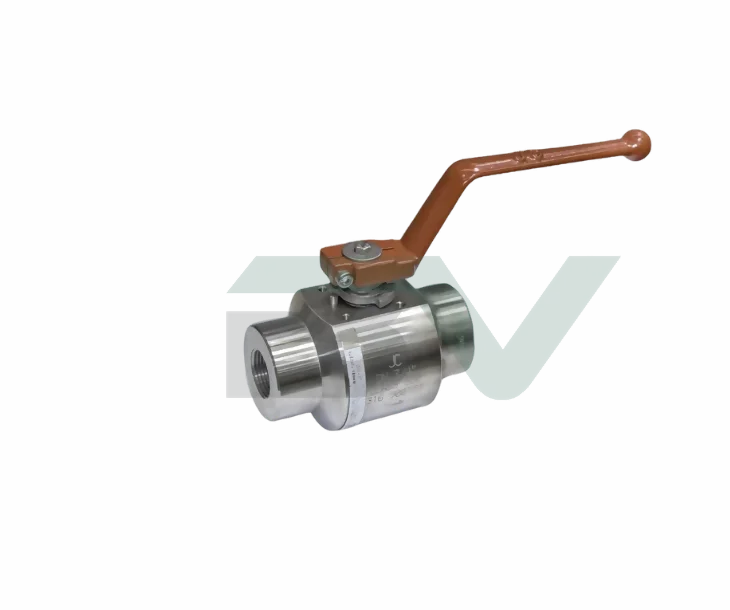

JC Valves 3411/3511 Reduced Bore Metal Seated Ball Valve

With a reduced bore construction, these valves optimise flow control while reducing weight and material costs, making them a cost-effective solution for industrial applications. This design enhances flow regulation while maintaining efficient fluid transfer, reducing turbulence and energy loss. The anti-blowout stem design prevents accidental ejection, ensuring operator safety and system reliability under extreme pressure conditions. This feature enhances process security and reduces the risk of failures in high-pressure applications.
Shop

Key Features

Key features and benefits of JC Valves 3411/3511 Reduced Bore Metal Seated Ball Valves.
1

Key Features

The 3411/3511 Series is built to handle extreme temperatures up to 800°C (1472°F) and operate efficiently in high-pressure environments, ensuring stable performance in critical process applications. This makes them ideal for steam, gas, and high-temperature fluid regulation.
2

Key Features

To withstand abrasion, corrosion, and chemical exposure, the ball and seats are coated with Tungsten Carbide, Chromium Carbide, or Stellite®, ensuring exceptional resistance to wear and aggressive process media. These coatings extend the operational life of the valve and reduce maintenance requirements, making them highly reliable for severe service applications.
3

Key Features

With Double Block & Bleed functionality, these valves allow safe isolation of process fluids, pressure relief, and system integrity testing without full shutdown. This ensures greater operational safety, prevents fluid contamination, and enables efficient maintenance procedures.

Immense Stocks

Powerful Specifications
Size Range: DN15 to DN50 (1/2" to 2")
Valve Design: Metal Seated UDV
Body Design: Monobloc Welded
Class Range: 800 & 1500
Kv Range: 11 to 72
Torque Range: 30 to 287
Weight Range: 3.5 to 10 KG
Certifications: API 6D, PED, MSS SP 55, NACE/ISO, Fire-Safe, & ATEX
Applications: Oil & Gas, Chemical, Pulp & Paper, Energy, Food, Marine, & More

Why Choose JC?

Advanced Sealing Technologies

Their products feature advanced sealing technologies that improve leak prevention and boost operational efficiency, making them ideal for critical applications in industries such as oil & gas and chemical processing.

High-Performance Materials

JC Valves utilises premium materials, including stainless steel, carbon steel, and special alloys, to deliver exceptional durability and reliability in demanding conditions.

Customisable Options

JC provides customisable valves in a range of sizes, materials, and pressure ratings, enabling clients to tailor products to their specific requirements and operational conditions.

Wide Variety of Valve Types

JC Valves specialises in a wide range of valve types, including ball, gate, globe, and check valves, designed to meet the unique demands of various industrial applications.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Datasheets and Catalogs

  • Document
Datasheets and Catalogs

JC 3411/31511 Datasheet
  • Document
Datasheets and Catalogs

JC Product Catalog

Frequently Asked Questions

JC Valves is a multinational company established in 1968, specialising in the manufacture and sale of high-quality industrial valves. They offer a wide range of valve solutions, including ball valves, for various applications across industries such as oil & gas, chemical, petrochemical, pulp & paper, and energy sectors.

JC Valves provides a comprehensive range of ball valves, including:?

  • Floating Ball Valves: Suitable for lower pressure applications, offering reliable sealing by allowing the ball to float and press against the seat.?
  • Trunnion-Mounted Ball Valves: Designed for high-pressure applications, where the ball is anchored by trunnions, reducing seat wear and operational torque.?
  • Metal-Seated Ball Valves: Ideal for high-temperature and abrasive conditions, providing enhanced durability compared to soft-seated variants.
  • Three-Way Ball Valves: Allowing for flow diversion and mixing, commonly used in process industries requiring versatile flow control.

JC Ball Valves are manufactured using high-quality materials such as:?

  • Carbon Steel: Suitable for general-purpose applications with moderate pressure and temperature requirements.?
  • Stainless Steel: Offering excellent corrosion resistance, ideal for applications involving corrosive fluids or environments.?
  • Special Alloys: Including materials like Inconel and Hastelloy, designed for extreme conditions involving high temperatures, pressures, or corrosive media.

Yes, JC Ball Valves are designed and manufactured to meet or exceed major international standards, including:?

  • API 6D: Specification for pipeline and piping valves.?
  • ISO 17292: Specification for metal ball valves for petroleum, petrochemical, and allied industries.?
  • ASME B16.34: Standards for valves flanged, threaded, and welding end.?

Compliance with these standards ensures reliability, safety, and interoperability in various industrial applications.

Yes, JC offers metal-seated ball valves specifically designed for high-temperature applications, providing enhanced durability and reliable sealing under extreme conditions.

Yes, many JC Ball Valves are equipped with ISO 5211 mounting pads, facilitating easy integration with pneumatic or electric actuators for automated flow control systems.

Yes, JC Ball Valves are designed to meet fire safety standards such as API 6FA and API 607, ensuring operational integrity during fire scenarios.

JC Ball Valves are widely utilized in industries including oil & gas, chemical processing, petrochemical, pulp & paper, energy, and mining, owing to their robust design and reliable performance.?

Yes, JC Valves offers tailored valve solutions to meet specific application requirements, including special materials, configurations, and design modifications.

You can contact JC Valves directly or reach out to authorised distributors for technical support, product selection assistance, and after-sales service.

JC Ball Valves can be purchased through authorised distributors and partners worldwide. For specific inquiries or to locate a distributor, visit the JC Valves website or contact their sales department.

Yes, JC Valves provides maintenance tutorials and resources, including videos and manuals, to assist customers in proper valve maintenance and operation.
