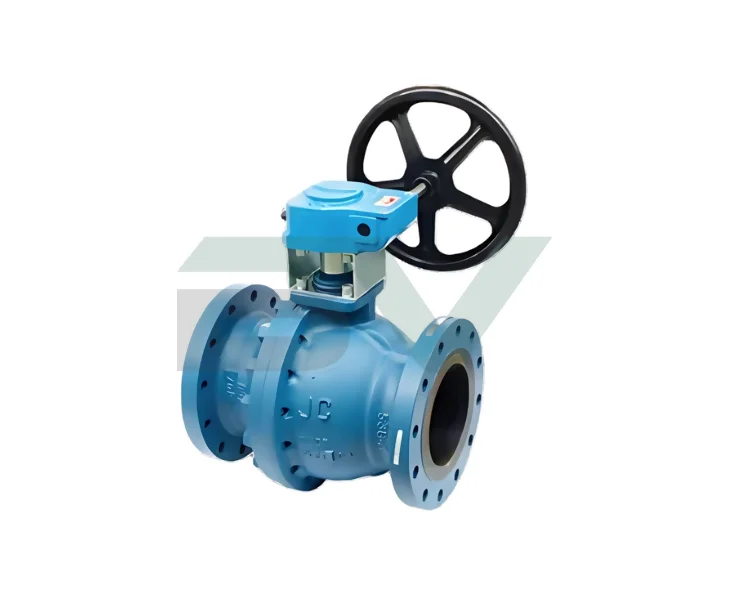

JC Valves 1516/1540 Full Bore Floating DIN Ball Valves

The JC Valves 1516/1540 series consists of full bore floating ball valves, engineered to DIN (Deutsches Institut für Normung) standards, ensuring seamless integration into European piping systems. These valves are designed for high-flow efficiency with minimal pressure drop, making them ideal for oil and gas, chemical processing, power generation, and steam applications. The floating ball mechanism allows for a secure shut-off by adjusting under pressure, reducing operational torque and enhancing valve reliability over time. Featuring an ISO 5211 mounting pad, they are actuator-ready, allowing seamless integration into automated or manual flow control systems.
Shop

Key Features

Key features and benefits.
1

Key Features

The full bore construction of the JC 1516/1540 series ensures that the internal valve diameter matches the pipeline diameter, eliminating flow restrictions and minimising pressure loss. This allows for uninterrupted fluid movement, reducing turbulence and optimising system efficiency.
2

Key Features

The API 607 fire-safe certification ensures that these valves maintain their sealing integrity even under extreme heat or fire exposure, preventing hazardous fluid leaks. The anti-static feature dissipates any electrostatic charges that may accumulate within the valve, reducing the risk of sparks that could ignite flammable substances.
3

Key Features

The floating ball design enables the ball to adjust slightly under pressure, ensuring a leak-proof seal against the valve seat. This mechanism enhances shut-off performance, preventing leakage even in fluctuating pressure conditions.

Immense Stocks

Powerful Specifications
Size Range: DN200 to DN300 (8" to 14")
Valve Design: Full Bore EN 1983
Body Design: EN 12516
Shell Thickness: EN ISO 17292
Flanges: DIN 2501 / EN 1092
Face to Face: EN 558 Series 27
Pressure Testing: EN 12266
Certifications: Fire Safe API/ISO, Fugitive Emissions, CE Marking, ATEX, TRCU, FDA, SIL, EN 13774, & More
Applications: Oil & Gas, Chemical, Paper, Energy, Food, Pharmaceutical, Marine, Mining, & More
Weight Range: 162 to 440 KG

Why Choose JC?

Advanced Sealing Technologies

Their products feature advanced sealing technologies that improve leak prevention and boost operational efficiency, making them ideal for critical applications in industries such as oil & gas and chemical processing.

High-Performance Materials

JC Valves utilises premium materials, including stainless steel, carbon steel, and special alloys, to deliver exceptional durability and reliability in demanding conditions.

Customisable Options

JC provides customisable valves in a range of sizes, materials, and pressure ratings, enabling clients to tailor products to their specific requirements and operational conditions.

Wide Variety of Valve Types

JC Valves specialises in a wide range of valve types, including ball, gate, globe, and check valves, designed to meet the unique demands of various industrial applications.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Datasheets and Catalogs

  • Document
Datasheets and Catalogs

JC 1516/1540 Datasheets
  • Document
Datasheets and Catalogs

JC Product Catalog

Frequently Asked Questions

JC Valves is a multinational company established in 1968, specialising in the manufacture and sale of high-quality industrial valves. They offer a wide range of valve solutions, including ball valves, for various applications across industries such as oil & gas, chemical, petrochemical, pulp & paper, and energy sectors.

JC Valves provides a comprehensive range of ball valves, including:?

  • Floating Ball Valves: Suitable for lower pressure applications, offering reliable sealing by allowing the ball to float and press against the seat.?
  • Trunnion-Mounted Ball Valves: Designed for high-pressure applications, where the ball is anchored by trunnions, reducing seat wear and operational torque.?
  • Metal-Seated Ball Valves: Ideal for high-temperature and abrasive conditions, providing enhanced durability compared to soft-seated variants.
  • Three-Way Ball Valves: Allowing for flow diversion and mixing, commonly used in process industries requiring versatile flow control.

JC Ball Valves are manufactured using high-quality materials such as:?

  • Carbon Steel: Suitable for general-purpose applications with moderate pressure and temperature requirements.?
  • Stainless Steel: Offering excellent corrosion resistance, ideal for applications involving corrosive fluids or environments.?
  • Special Alloys: Including materials like Inconel and Hastelloy, designed for extreme conditions involving high temperatures, pressures, or corrosive media.

Yes, JC Ball Valves are designed and manufactured to meet or exceed major international standards, including:?

  • API 6D: Specification for pipeline and piping valves.?
  • ISO 17292: Specification for metal ball valves for petroleum, petrochemical, and allied industries.?
  • ASME B16.34: Standards for valves flanged, threaded, and welding end.?

Compliance with these standards ensures reliability, safety, and interoperability in various industrial applications.

Yes, JC offers metal-seated ball valves specifically designed for high-temperature applications, providing enhanced durability and reliable sealing under extreme conditions.

Yes, many JC Ball Valves are equipped with ISO 5211 mounting pads, facilitating easy integration with pneumatic or electric actuators for automated flow control systems.

Yes, JC Ball Valves are designed to meet fire safety standards such as API 6FA and API 607, ensuring operational integrity during fire scenarios.

JC Ball Valves are widely utilized in industries including oil & gas, chemical processing, petrochemical, pulp & paper, energy, and mining, owing to their robust design and reliable performance.?

Yes, JC Valves offers tailored valve solutions to meet specific application requirements, including special materials, configurations, and design modifications.

You can contact JC Valves directly or reach out to authorised distributors for technical support, product selection assistance, and after-sales service.

JC Ball Valves can be purchased through authorised distributors and partners worldwide. For specific inquiries or to locate a distributor, visit the JC Valves website or contact their sales department.

Yes, JC Valves provides maintenance tutorials and resources, including videos and manuals, to assist customers in proper valve maintenance and operation.
