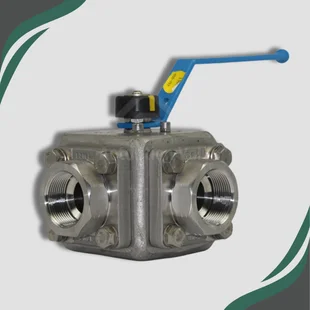

Starline Stainless Steel 3 Way Ball Valve BSPT – T Port – Lever Operated
Product Code: 286-SGT-VL3BSPT, 286-SGT-VL3NPT
The Starline Stainless Steel 3 Way Ball Valve BSPT – T Port – Lever Operated is a high-quality, multi-directional valve designed for complex flow applications where mixing or distributing media is essential. Crafted from durable 316 stainless steel, this Italian-made valve offers excellent corrosion resistance and is suitable for a wide range of process industries including chemical, water treatment, food & beverage, marine, and general industrial use.
Featuring BSPT (British Standard Pipe Tapered) threaded ends, the valve ensures a secure, leak-tight connection in tapered thread systems. The T-port configuration allows flow between all three ports simultaneously or between any two ports, making it ideal for mixing, diverting, or multi-line distribution. The full bore design provides maximum flow efficiency, while the lever-operated handle delivers smooth, quarter-turn manual control for quick shutoff or redirection. The floating ball ensures tight sealing, and PTFE or reinforced seat options provide chemical resistance and long service life.
Key Features:
Body Material: 316 Stainless Steel – corrosion-resistant and suitable for harsh media
End Connections: BSPT Threaded – tapered thread for pressure-tight, secure fittings
Flow Configuration: 3 Way T Port – ideal for mixing or distributing media between three ports
Bore Type: Full Bore – enables unrestricted flow and reduces pressure drop
Operation: Lever Operated – quarter-turn handle for fast, manual control
Ball Design: Floating Ball – ensures tight shutoff under various pressures
Seat Options: PTFE or reinforced – excellent chemical and thermal resistance
Applications: Chemical, water, oil & gas, food & beverage, marine, and industrial flow control
Manufacturing Origin: Engineered and manufactured in Italy by Starline – globally trusted brand
Built for versatility and precision, the Starline 3 Way BSPT T-Port Stainless Steel Ball Valve is the go-to solution for engineers seeking performance, durability, and flexible flow control in a compact valve body.
