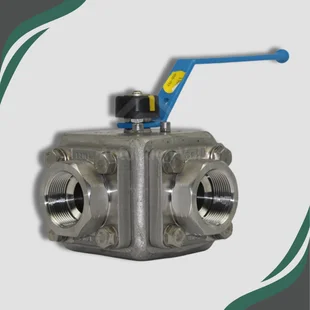

Starline Stainless Steel 3 Way Ball Valve BSPT – L Port – Lever Operated
Product Code: 286-SGT-VL3BSPT, 286-SGT-VL3NPT
The Starline Stainless Steel 3 Way Ball Valve BSPT – L Port – Lever Operated is a compact and highly durable valve designed for directional flow control in demanding process environments. Engineered in Italy using precision-machined 316 stainless steel, this L-port valve is ideal for isolating or diverting flow between two ports while keeping one port shut. Its BSPT (British Standard Pipe Tapered) threaded ends ensure a pressure-tight seal in threaded piping systems, commonly used in the UK, offshore, and process industries.
The L-port configuration provides a 90-degree diversion between two flow paths, making it ideal for switching applications. The full bore design minimises pressure drop and ensures maximum flow efficiency, while the lever-operated handle allows quick and reliable manual control. This valve is fitted with PTFE or reinforced seats for enhanced sealing, wear resistance, and chemical compatibility—suitable for use with water, oil, gas, steam, and a range of aggressive process fluids.
Key Features:
Body Material: 316 Stainless Steel – excellent corrosion resistance and mechanical durability
End Connections: BSPT Threaded – tapered thread for secure, leak-tight fit
Flow Configuration: 3 Way L Port – designed for diverting flow between two outputs
Bore Type: Full Bore – allows unrestricted flow and reduces pressure loss
Operation: Lever Operated – quarter-turn handle for fast and simple control
Ball Design: Floating Ball – delivers dependable sealing under system pressure
Seat Options: PTFE or reinforced – high chemical and thermal resistance
Applications: Water, steam, oil & gas, chemical, marine, food & beverage, and general industrial use
Manufacture: Precision-made in Italy by Starline – trusted for quality and performance
This Starline 3 way BSPT L-port valve offers reliable flow control in applications where durability, chemical resistance, and secure thread connection are essential.
