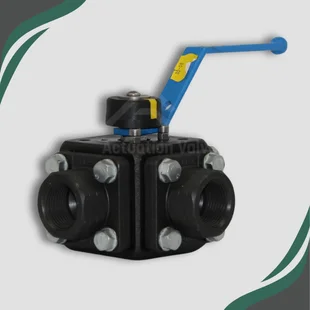

Starline Carbon Steel NPT 3 Way Ball Valve – L Port
The Starline Carbon Steel NPT 3 Way Ball Valve – L Port is a heavy-duty, multi-port flow control solution engineered for reliability in high-pressure, industrial environments. Manufactured in Italy to the highest standards, this 3 way valve is constructed from robust carbon steel and features a full bore design, allowing for efficient flow with minimal pressure drop. The L-port configuration makes it ideal for diverting flow between two outlets or isolating one branch in systems requiring directional control.
Designed for applications in oil & gas, petrochemical, water treatment, and industrial processing, this valve delivers consistent performance in demanding conditions. Its NPT (National Pipe Thread) ends are machined to ANSI B1.20.1 specifications, ensuring a secure and leak-tight fit in threaded systems. The floating ball design provides tight shutoff and smooth operation, while PTFE or reinforced seat options offer chemical resistance and long service life. The valve is suitable for both manual use and automation via pneumatic, electric, or electro-pneumatic actuators.
Key Features:
Body Material: Carbon Steel – ideal for high-pressure, corrosive, or abrasive process conditions
End Connections: NPT Threaded – ANSI B1.20.1 compliant for secure, leak-free installations
Flow Configuration: L Port – diverts flow between two ports or isolates branches as needed
Bore Type: Full Bore – allows for high flow capacity with reduced turbulence
Ball Design: Floating Ball – delivers reliable shutoff under pressure
Seat Options: PTFE or reinforced materials – chemical-resistant and thermally stable
Applications: Suitable for oil & gas, chemical processing, water systems, and general industry
Actuation Compatibility: Manual, pneumatic, electric, or electro-pneumatic
With proven performance and rugged construction, the Starline Carbon Steel NPT 3 Way Ball Valve – L Port offers versatile and reliable flow control in even the most challenging systems.
