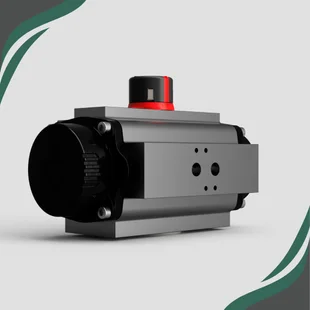

Actreg ADA500-F07-F10-DS22 Rack & Pinion Pneumatic Actuator – 90°

Product Code:

(0 reviews)

| Write review

£426.00ex. VAT

Pay in 3 easy payments of £170.40 with Klarna

Qty:

Add to Basket

Make an Enquiry Apply for Credit

Next Day Delivery Available

Technical Support

Price Match Guarantee

Product Description

Actreg ADA500-F07-F10-DS22 Rack & Pinion Pneumatic Actuator – 90° – Anodised Aluminium – SIL?3

The Actreg ADA500-F07-F10-DS22 is a premium industrial-grade actuator engineered for high-demand environments requiring strong torque and functional safety. Featuring a precision rack & pinion mechanism, it delivers seamless 90° actuation, with support for ISO?5211 F07 and F10 mounting interfaces and a 22?mm DS22 square shaft, making it ideal for large-quarter-turn valves. Built with a hard-anodised aluminium housing, the actuator is both robust and corrosion-resistant, and it is fully SIL?3 certified for integration within safety-instrumented systems across industries like oil & gas, power generation, utilities, and chemical processing.

Technical Overview

Specification	Details
Model	ADA500-F07-F10-DS22
Operating Motion	90° rack & pinion movement (±5° adjustable stops)
Mounting Options	ISO 5211 F07 and F10 flange patterns
Output Shaft	22?mm square (DS22)
Housing Material	Hard-anodised aluminium
Variants	Double-acting or spring-return available
Pressure Range	2.5?–?8?bar compressed air
Temperature Range	Standard industrial (approx. −20?°C to +80?°C)
Safety Rating	SIL?3 compliant with anti-blowout shaft
