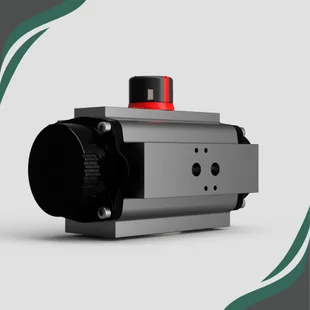

Actreg ADA1750-F14-DS36 Rack & Pinion Pneumatic Actuator – 90°

Product Description

Actreg ADA1750-F14-DS36 Rack & Pinion Pneumatic Actuator – 90° – Anodised Aluminium – SIL?3

The Actreg ADA1750-F14-DS36 is a top-tier, high-capacity pneumatic actuator designed specifically for large industrial quarter-turn valves. Powered by a heavy-duty rack & pinion mechanism, this actuator delivers precise 90° actuation with strong torque output. Featuring an ISO 5211 F14 mounting flange and a 36?mm DS36 square shaft, it integrates with a broad variety of oversized valving systems. Encased in a hard-anodised aluminium housing, ADA1750 provides exceptional durability in harsh environments. With full SIL?3 certification, it’s fully suited for safety-instrumented systems across sectors like power generation, petrochemical, large-scale waterworks, and industrial process automation.

Technical Overview

• Model: ADA1750-F14-DS36

• Actuation Motion: 90° rotation via rack & pinion with external ±5° travel stops

• Mounting Interface: ISO 5211 F14 flange configuration

• Drive Shaft: 36?mm square (DS36)

• Construction Material: Hard-anodised aluminium—durable and corrosion-resistant

• Variants Offered: Double-acting and spring-return models available

• Operating Range: 2.5–8?bar compressed air pressure

• Temperature Class: Standard industrial (approx. −20?°C to +80?°C)

• Safety Features: Anti-blowout shaft design and SIL?3 certification for high-reliability automation
