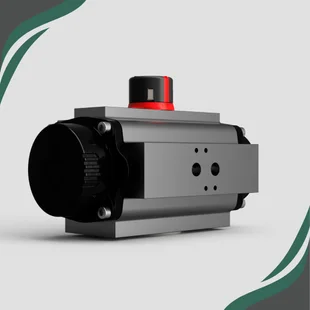

Actreg ADA130-F05-F07-DS17 Rack & Pinion Pneumatic Actuator – 90°

Product Description

Actreg ADA130-F05-F07-DS17 Rack & Pinion Pneumatic Actuator – 90° – Anodised Aluminium – SIL3

The Actreg ADA130-F05-F07-DS17 is a robust rack & pinion pneumatic actuator engineered for precision 90° operation in high-demand industrial environments. Featuring ISO 5211 F05 and F07 mounting flanges and a 17?mm square DS17 shaft, it offers wide compatibility with a variety of quarter-turn valves. The hard-anodised aluminium housing ensures excellent resistance to corrosion and mechanical wear. Fully certified to SIL?3 (Safety Integrity Level 3), the ADA130 is ideal for safety-critical applications such as energy, oil & gas, process control, water treatment, and automation systems.

Technical Specifications

• Model: ADA130-F05-F07-DS17

• Rotation: 90° rack & pinion (external adjustable stops ±5°)

• Mounting Interface: ISO F05 and F07 flange patterns

• Output Shaft: 17?mm square (DS17)

• Housing Material: Hard-anodised aluminium for high durability

• Variants: Double-acting or spring-return types available

• Operating Pressure: 2.5–8?bar compressed air

• Temperature Class: Standard industrial range (approx. −20?°C to +80?°C)

• Safety Certification: SIL?3 – with anti-blowout shaft safety design

Features & Benefits

• Compact, High Torque Design: Rack & pinion action ensures stable torque and quick actuation of ball, butterfly, and plug valves

• Standard Valve Mounting: Supports both ISO F05 and F07 mounting flanges, plus DS17 drive shaft for excellent valve compatibility

• Accessory Integration: Namur VDI/VDE 3845 interface for solenoid valves, positioners, or limit switches

• Service-Friendly Build: External travel stops and modular internal design enable quick maintenance

• Safety-First Construction: Anti-blowout pinion and SIL?3 certification meet rigorous functional safety requirements
