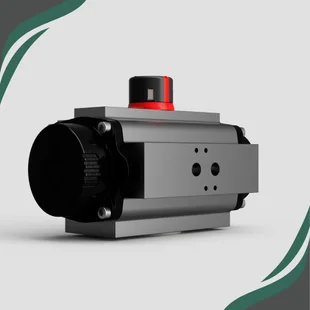

Actreg ADA10-F03-DS9 Rack & Pinion Pneumatic Actuator – 90°

Product Description

Actreg ADA10-F03-DS9 Rack & Pinion Pneumatic Actuator – 90° – Anodised Aluminium – SIL3

The Actreg ADA10-F03-DS9 is a compact and high-performance rack and pinion pneumatic actuator built for precision valve automation. With its 90° rotation and F03 ISO mounting pattern, this actuator provides reliable, efficient control in a wide range of industrial environments. The hard anodised aluminium body offers excellent resistance to corrosion and wear, while its SIL 3 certification ensures compatibility with safety-instrumented systems in critical applications.

Designed to accommodate both double-acting and spring-return configurations, the ADA10 series offers smooth actuation, consistent torque output, and low maintenance demands. Its modular design allows for flexible mounting of accessories such as solenoid valves, switchboxes, and positioners.

Key Features

• Model: ADA10-F03-DS9

• Motion: 90° rotation (rack and pinion design)

• Mounting: ISO 5211 F03 pattern with DS9 output shaft

• Shaft Size: 9 mm square drive

• Material: Hard anodised aluminium housing for corrosion and wear resistance

• Actuation Type: Double-acting or spring-return

• Operating Pressure: 2.5 to 10 bar

• Temperature Rating: Standard temperature range

• Certification: SIL 3 rated; ATEX-compliant for gas and dust zones

• Interfaces: Namur mounting for accessories; external travel stops ±5°

Technical Specs
