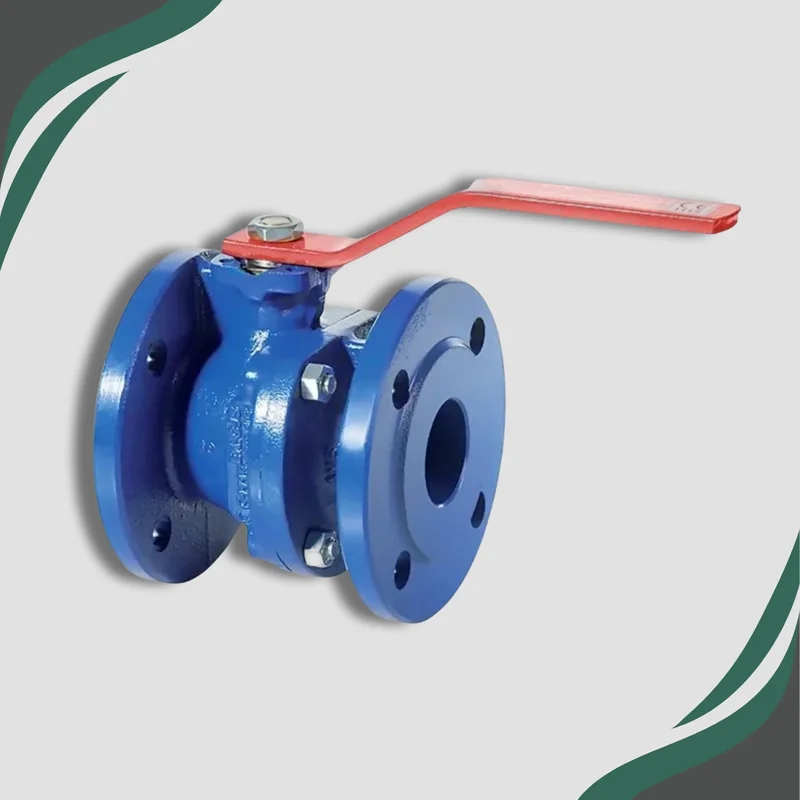

BV-5577 Ductile Iron Ball Valve – Flanged PN16 – Direct Mount
The BV-5577 Ductile Iron Ball Valve – Flanged PN16 – Direct Mount is a rugged and reliable isolation valve engineered for consistent performance across a wide range of industrial flow applications. Constructed from high-strength ductile iron, this valve offers excellent mechanical durability and corrosion resistance, making it suitable for water, air, oil, and general-purpose process lines.
Designed with a full bore configuration, the BV-5577 allows for maximum flow with minimal pressure drop, supporting efficient system performance. The PN16 flanged ends ensure a secure and leak-tight connection in accordance with standard piping specifications, while the direct mount ISO 5211 pad enables seamless integration with pneumatic or electric actuators—eliminating the need for mounting brackets or couplers. Internally, a chromed brass ball, stainless steel stem, and PTFE seats ensure smooth operation, excellent sealing, and long-term reliability even under frequent cycling.
Key Features:
Body Material: Ductile Iron – tough and corrosion-resistant for industrial durability
Ball: Chromed Brass – smooth movement and wear-resistant surface
Stem: Stainless Steel – provides strength and corrosion protection
Seats: PTFE – chemical resistant with excellent sealing capability
End Connection: Flanged PN16 – standard flange for leak-proof pipework connection
Mounting: Direct Mount – ISO 5211 pad allows quick actuator installation
Bore Type: Full Bore – unrestricted flow and minimal pressure loss
Applications: Suitable for water, oil, compressed air, non-corrosive fluids, and general flow control
Automation Ready: Ideal for electric and pneumatic actuation
The BV-5577 is a go-to solution for industrial engineers seeking a robust, automation-ready valve for PN16 systems—offering long service life, low maintenance, and reliable shutoff every time.
