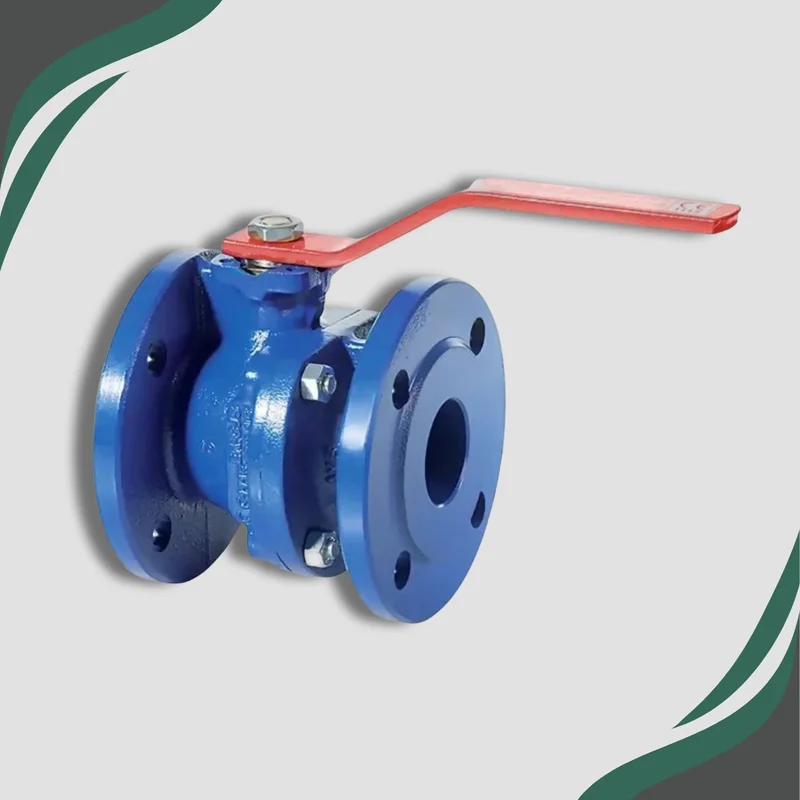

BV-5556 Ductile Iron Ball Valve - Flanged PN16 - Direct Mount

Product Description

BV-5556 Ductile Iron Ball Valve – Flanged PN16 – Direct Mount – Viton Seats

The BV-5556 Ductile Iron Ball Valve – Flanged PN16 – Direct Mount with Viton Seats is a high-performance valve designed for applications requiring enhanced chemical resistance and temperature stability. Featuring a ductile iron 2-piece body, this valve delivers exceptional durability and mechanical strength, making it well-suited for industrial systems handling aggressive media such as hydrocarbons, oils, and solvents.

Fitted with Viton (FKM) seats, the BV-5556 offers excellent resistance to chemicals, heat, and compression set—ideal for environments with elevated temperatures or where PTFE may not be suitable. The chromed brass ball ensures smooth operation and resistance to wear, while the stainless steel stem provides corrosion protection and long-term reliability. With PN16 flanged ends, the valve integrates easily into standard pipework, and its ISO 5211 direct mount pad allows for straightforward actuator installation, enabling fast conversion to automated operation.

Key Features:

• Body Material: Ductile Iron – strong and impact-resistant for industrial use

• Ball: Chromed Brass – smooth operation with added surface hardness

• Stem: Stainless Steel – resists corrosion under harsh conditions

• Seats: Viton (FKM) – excellent chemical resistance and high-temperature performance

• End Connection: Flanged PN16 – industry standard for leak-proof installation

• Mounting: Direct Mount – ISO 5211 pad for actuator-ready integration

• Bore Type: Full Bore – allows unrestricted flow with minimal pressure drop

• Applications: Chemical processing, oil & gas, fuel systems, solvent handling, and industrial utilities

• Temperature Range: Typically up to +180°C (depending on media and system design)

The BV-5556 is the ideal solution for engineers and operators seeking a durable, automation-ready valve capable of handling demanding fluids with confidence.
