Air Torque Pneumatic Actuator AT751U-D-A F16-N-46DS – 90° Rotation

Product Description

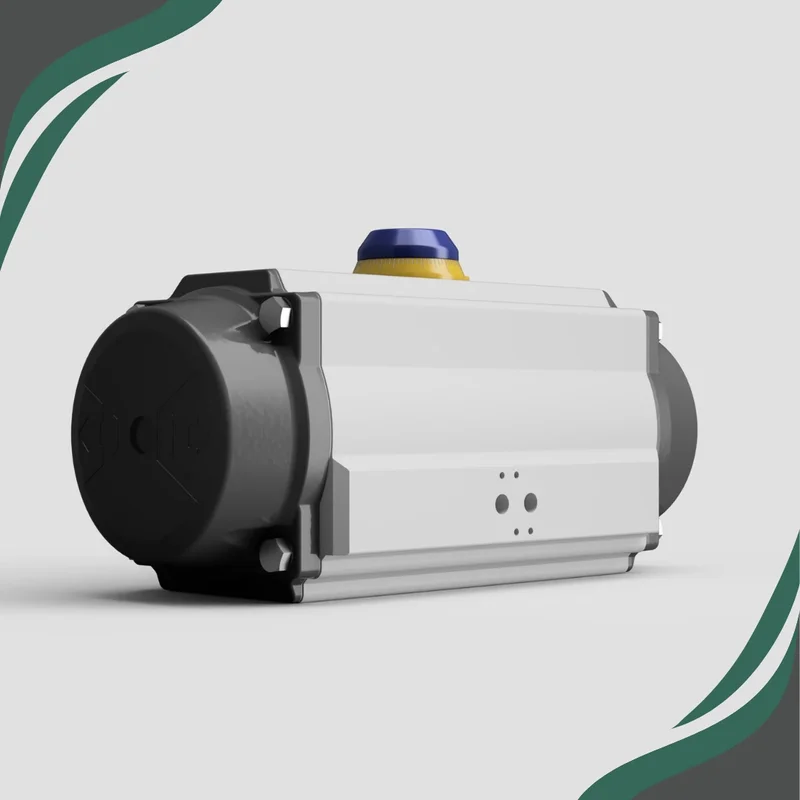

Air Torque Pneumatic Actuator AT751U-D-A F16-N-46DS

Rack & Pinion | 90° Rotation | Anodised Aluminium | SIL 3 Certified

The Air Torque AT751U-D-A F16-N-46DS is a heavy-duty pneumatic actuator designed for reliable quarter-turn valve automation. Featuring a rack and pinion mechanism, it delivers precise 90° rotation and is built with a hard anodised aluminium body for exceptional corrosion resistance and long-term durability in industrial settings. This model is double acting, meaning compressed air is used to operate the actuator in both directions. With a high torque output and SIL 3 compliance, it's ideal for critical applications where safety and performance are paramount.

Key Features:

• Double Acting (D-A) operation for powerful, consistent torque in both directions

• ISO 5211 F16 mounting flange with 46mm square drive shaft (DS46) for secure and universal valve interface

• Durable anodised aluminium housing for superior corrosion resistance

• SIL 3 Certified for use in safety-instrumented systems and hazardous applications

• Precision rack and pinion design for smooth 90° rotation

• High torque output designed for large valves in demanding environments

• Compact and efficient build for easy installation and reduced maintenance

Technical Specifications:

Technical Specs
