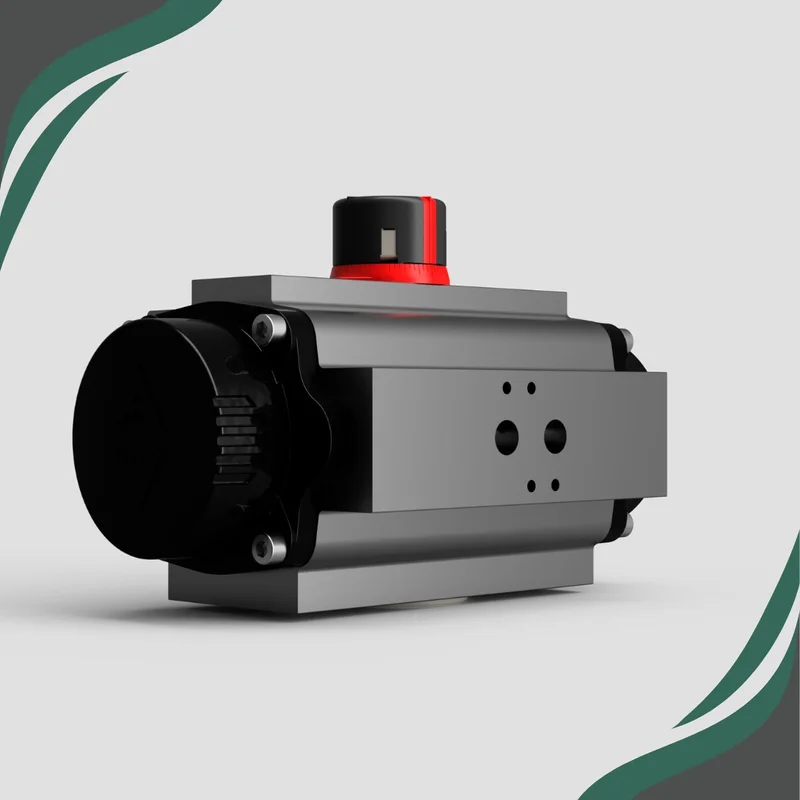

Actreg Pneumatic Actuator ASR2500-F16-DS46 – Rack & Pinion, 90°

Product Description

Actreg Pneumatic Actuator ASR2500-F16-DS46 – Rack & Pinion, 90° Rotation, Anodised Aluminium, SIL?3

The Actreg ASR2500-F16-DS46 is a heavy-duty spring-return pneumatic actuator designed for high-integrity automation of large quarter-turn valves. Featuring a robust rack & pinion mechanism providing 90° rotation, it is engineered for durability and safety in industrial environments. With an ISO 5211 F16 mounting flange and a 46?mm DS46 square drive shaft, this actuator ensures compatibility with oversized valve assemblies. Its hard-anodised aluminium housing provides excellent resistance to corrosion and wear. Fully SIL?3 certified, the ASR2500 is ideal for integration into functional safety systems across sectors such as oil & gas, power generation, water treatment, and petrochemical processing.

Key Features

• Fail-Safe Design: Spring-return mechanism ensures valve defaults to a safe position when air is lost.

• High Torque Delivery: Engineered to actuate large, heavy-duty valves reliably.

• Solid Build: Hard-anodised aluminium construction for superior durability and minimal maintenance.

• Standard Valve Interface: ISO F16 flange combined with a 46?mm DS46 shaft for universal mounting.

• Safety-Compliant: SIL?3 certified for use in safety instrumented systems.

• Precision Adjustment: Includes ±5° external travel stops for accurate valve positioning.

• Accessory Ready: Namur VDI/VDE?3845 interface allows easy integration with solenoid valves, limit switches, and positioners.

Technical Specifications

Technical Specs
