Actreg Pneumatic Actuator ADA2100-F16-DS46 – Rack & Pinion, 90°

Product Description

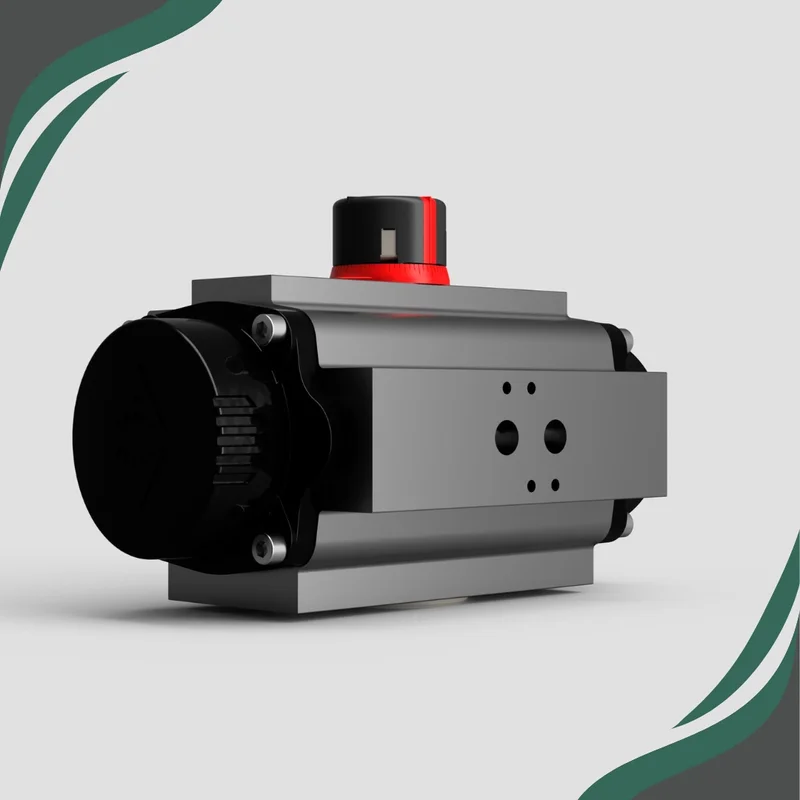

Actreg Pneumatic Actuator ADA2100-F16-DS46 – Rack & Pinion, 90° Rotation, Anodised Aluminium, SIL 3

The Actreg ADA2100-F16-DS46 is a robust pneumatic actuator designed for demanding industrial applications that require high torque, safety compliance, and long-term reliability. Featuring a rack and pinion mechanism with 90° rotation, this actuator is housed in anodised aluminium for excellent resistance to corrosion and wear. The ISO 5211 F16 mounting interface and DS46 square drive shaft make it ideal for actuating large ball, butterfly, and plug valves. SIL 3 compliance ensures its suitability for safety-critical systems across oil & gas, chemical, and process industries.

Key Features

• High Torque Output: Capable of actuating large-diameter valves with consistent force at 90° rotation.

• Anodised Aluminium Housing: Durable and corrosion-resistant for extended service life in harsh environments.

• ISO 5211 Mounting: F16 flange with DS46 square drive shaft for secure and universal valve compatibility.

• SIL 3 Certified: Approved for use in safety instrumented systems, ensuring high-integrity operation.

• External Travel Stops: ±5° adjustable stops for precise valve positioning and stroke limitation.

• Accessory Ready: Compatible with Namur VDI/VDE 3845 solenoid valves, limit switchboxes, and positioners.

Technical Specifications

Technical Specs
