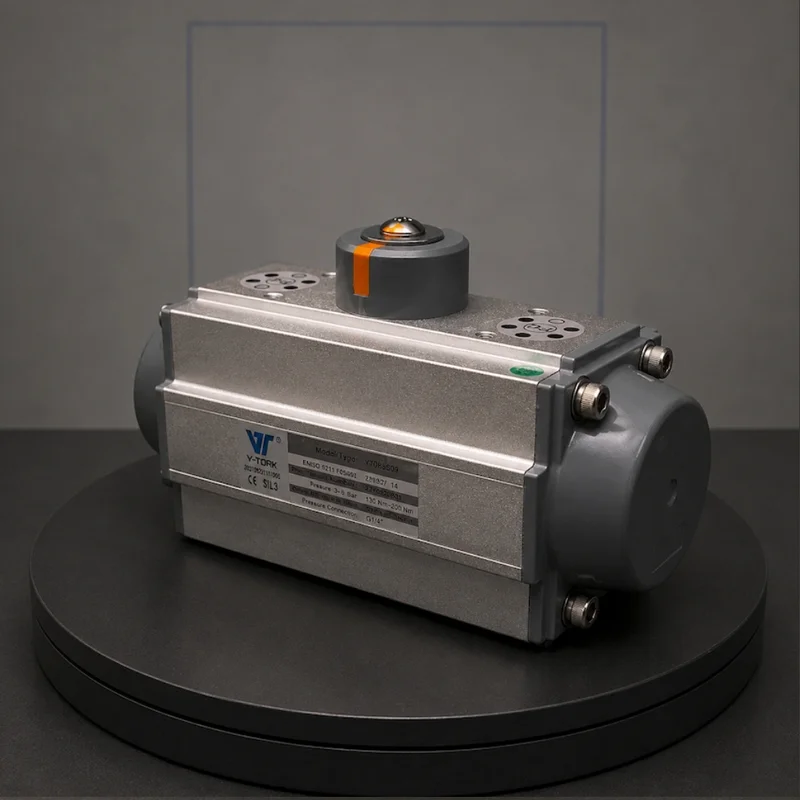

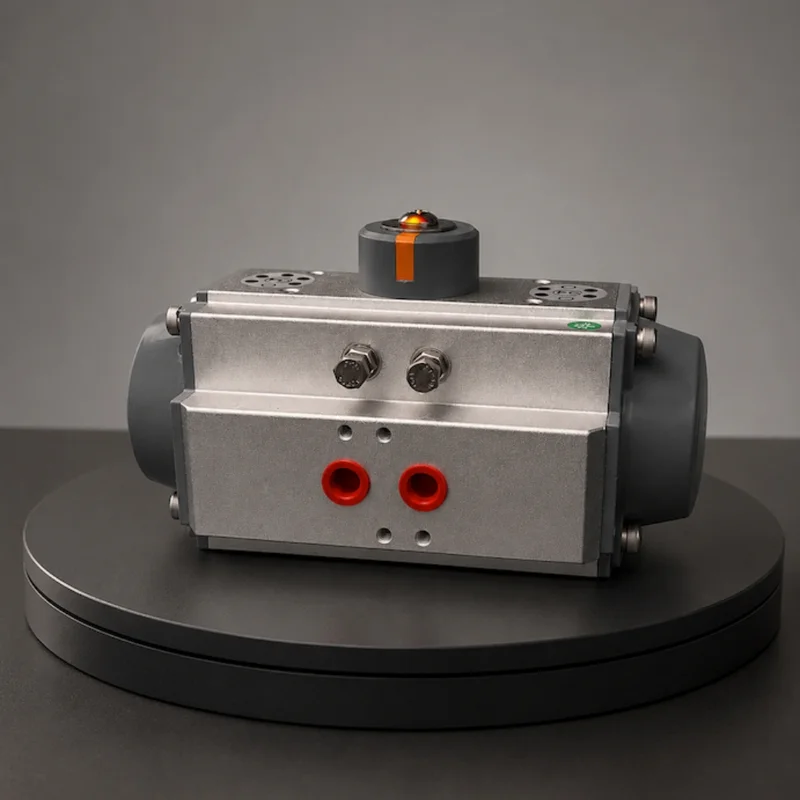

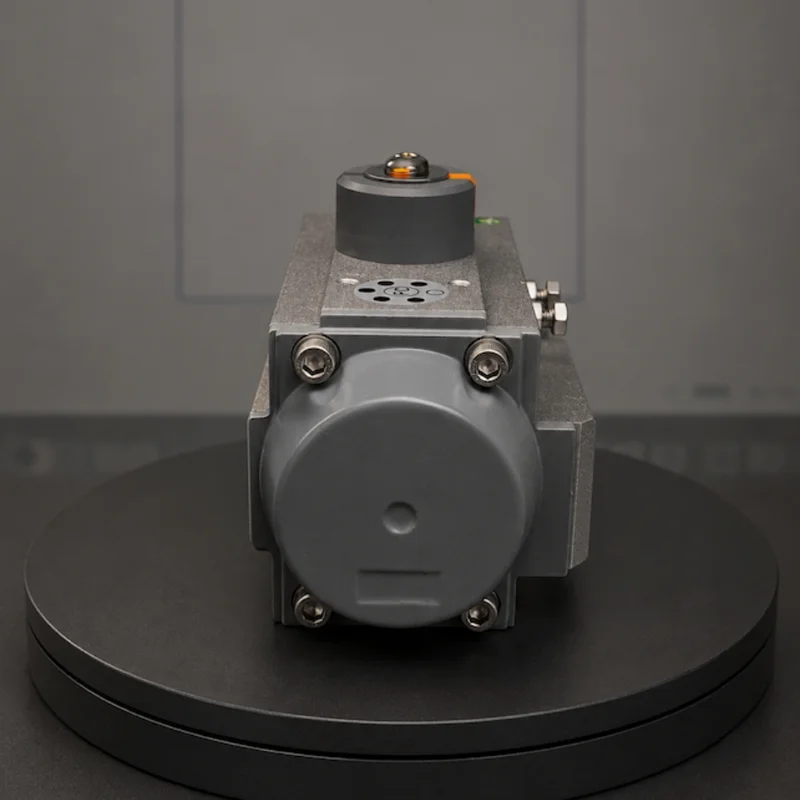

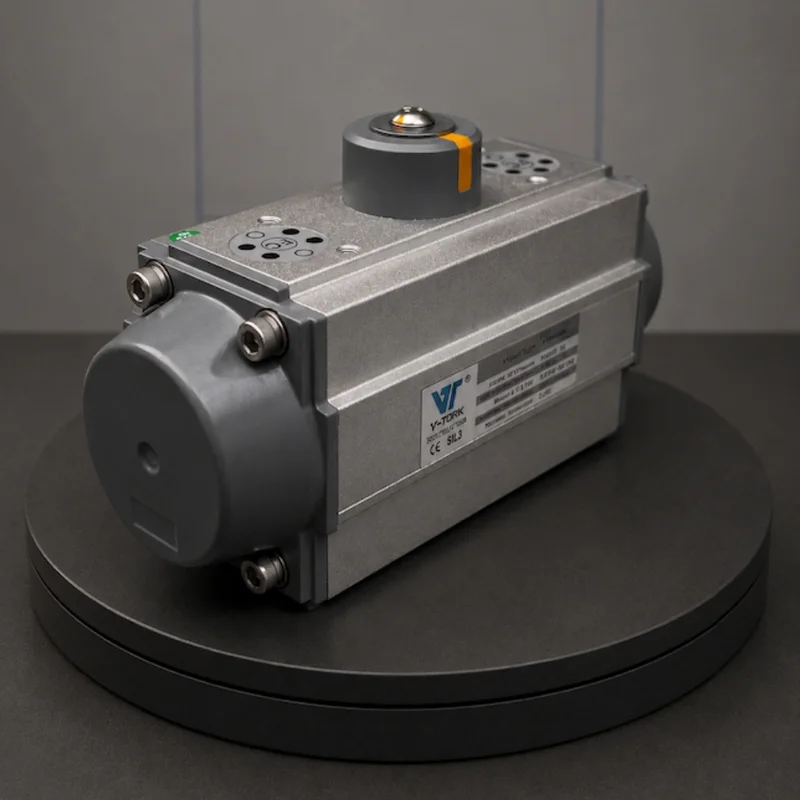

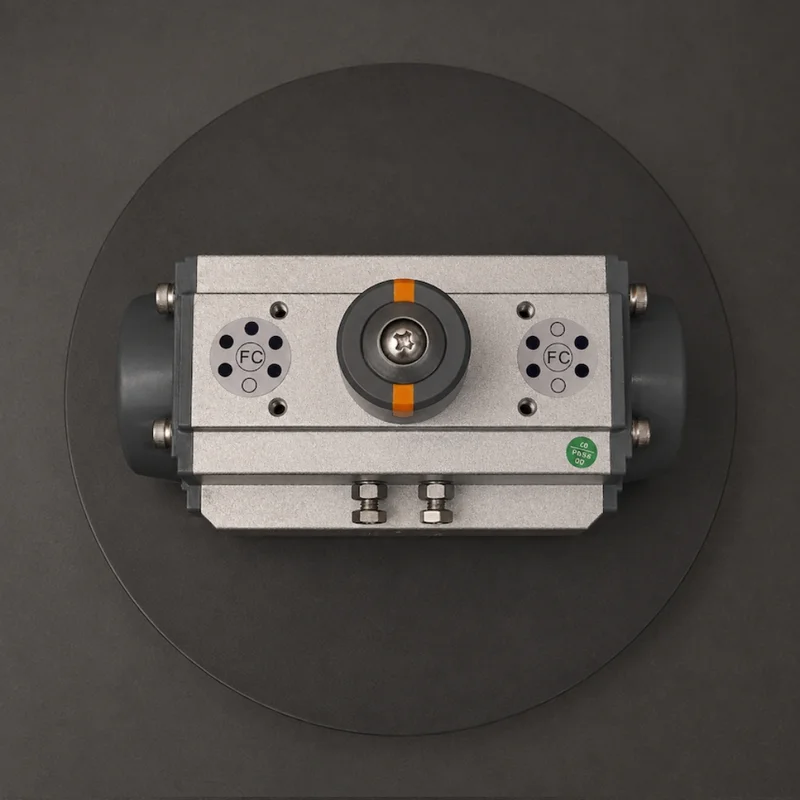

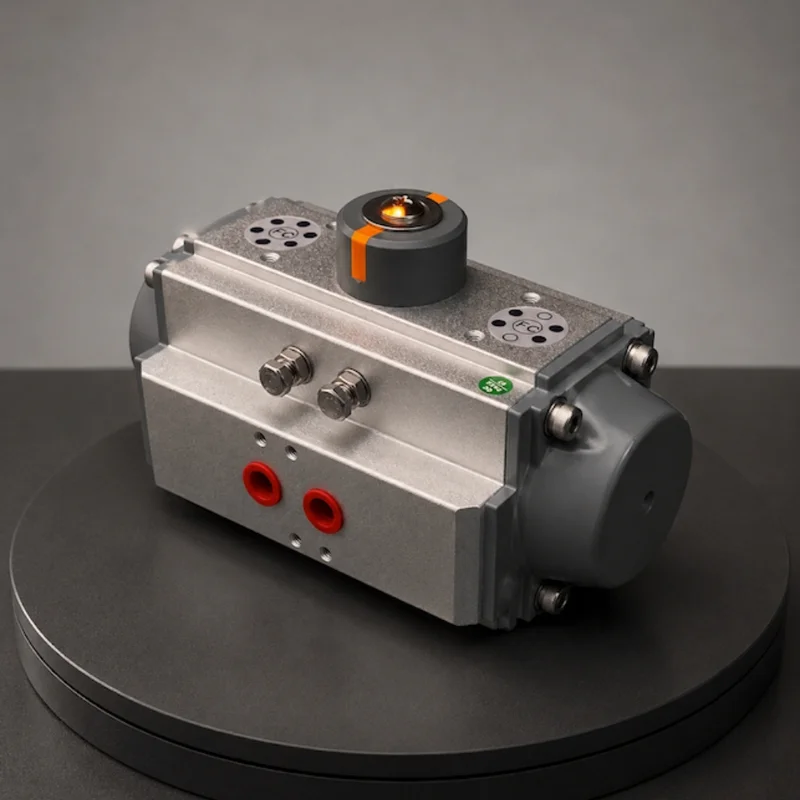

V-Tork VTN125S10 New Series Double Acting Pneumatic Actuator F07/F10

Product Description

V-Tork VTN125S10 New Series Double Acting Pneumatic Actuator F07/F10

Double Acting | Rack & Pinion | 90° Rotation | Extruded Aluminium Body | F07/F10 Mounting

The V-Tork VTN125S10 is a versatile double acting pneumatic actuator from the VT New Series range, providing reliable and precise torque output for medium quarter-turn valve applications. Its extruded aluminium body and dual-piston rack and pinion mechanism deliver consistent pneumatic performance in both open and close directions. Compatible with ISO F07 and F10 mounting flanges, the VTN125S10 is NAMUR compatible for easy integration with solenoid valves, limit switches and positioners.

Key Features:

• Double Acting Operation: Pneumatic control in both open and close directions for precise, positive actuation

• F07/F10 Mounting: Compatible with ISO 5211 F07 and F10 flange standard

• NAMUR Standard: Compatible with solenoid valves, limit switches and positioners

• Extruded Aluminium Body: Lightweight and corrosion resistant construction

• Dual Independent Travel Stoppers: Precise end-of-travel adjustment

• Modularised Cartridge Design: Easy maintenance and torque adjustment

• ATEX & SIL 3 Certified: Bureau Veritas certified for hazardous area applications

Technical Specifications:

Technical Specs
