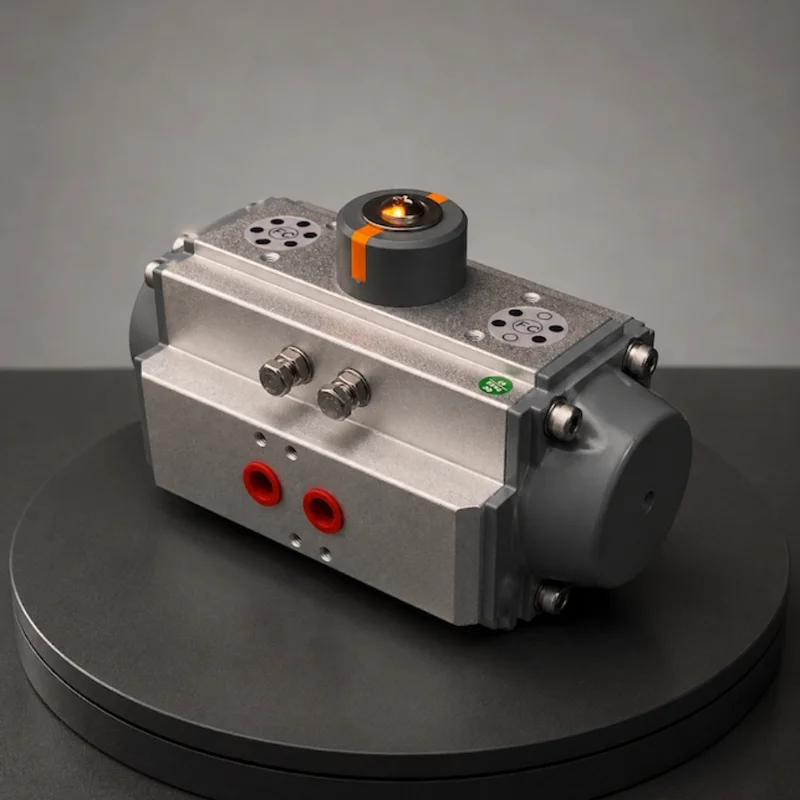

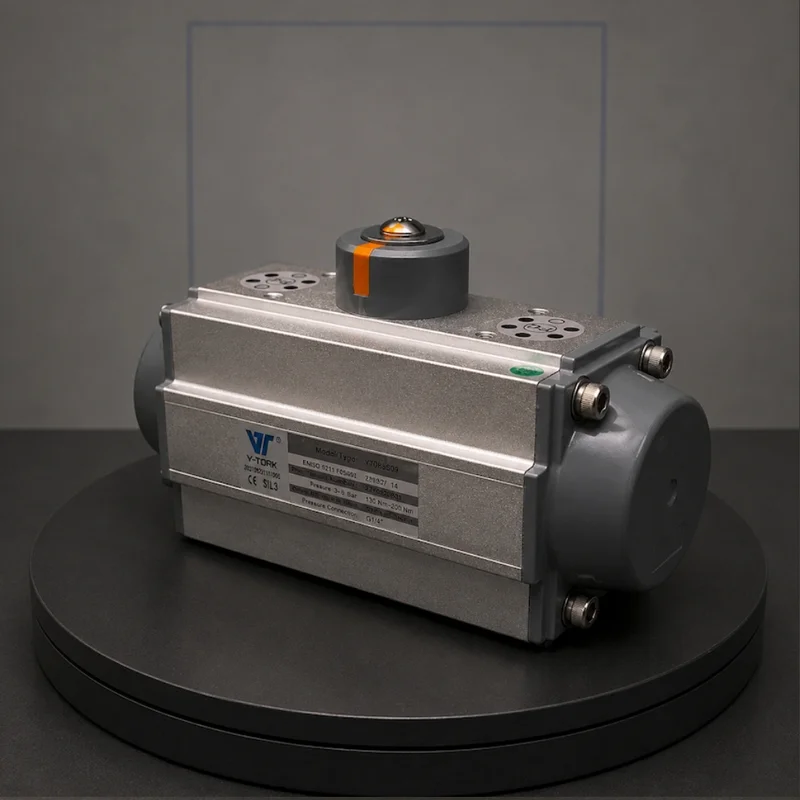

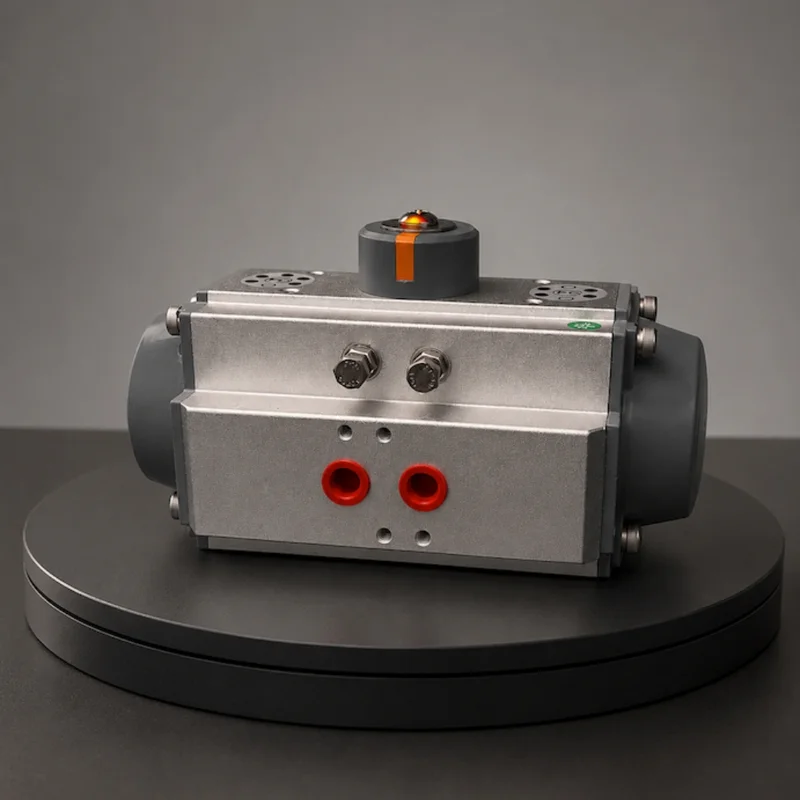

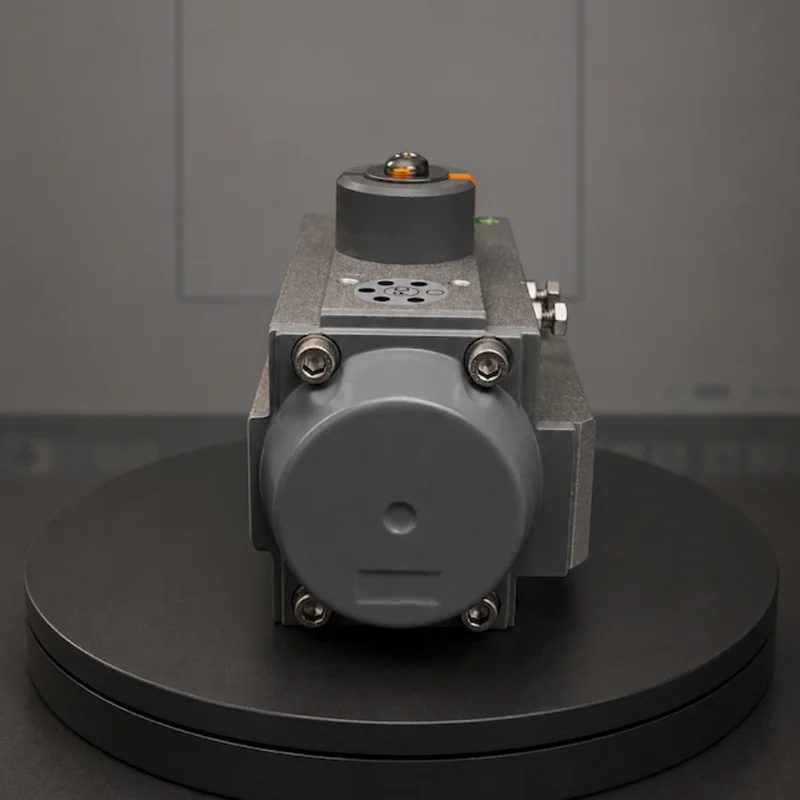

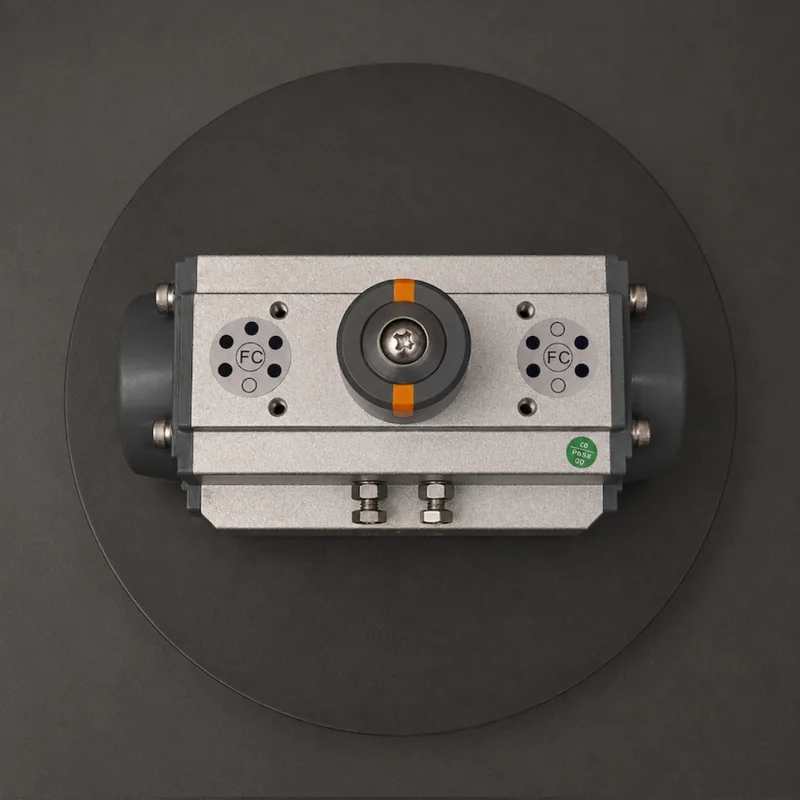

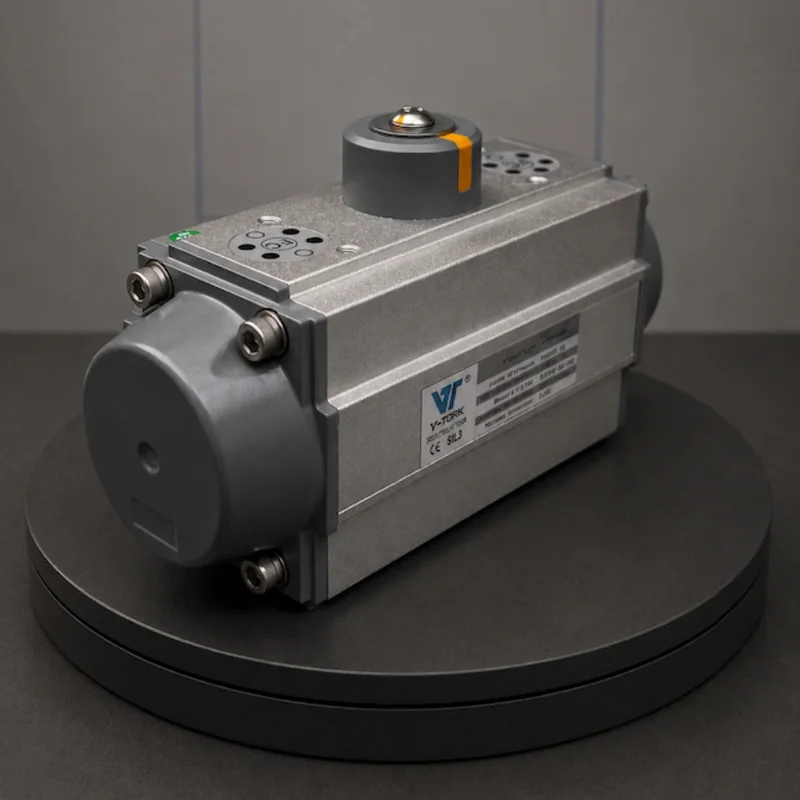

V-Tork VT075S09 New Series Double Acting Pneumatic Actuator F05/F07

Double Acting | Rack & Pinion | 90° Rotation | Extruded Aluminium Body | F05/F07 Mounting

The V-Tork VT075S09 is a reliable double acting pneumatic actuator from the VT New Series range, designed for reliable quarter-turn valve automation in a variety of industrial applications. Featuring an extruded aluminium body with a dual-piston rack and pinion mechanism, the VTN075S09 provides positive pneumatic control in both the open and closed positions. Compatible with ISO F05 and F07 mounting flanges, it is NAMUR compatible for easy integration with accessories.

Spring return torque output (N·m)

Air stroke torque shown as 0° / 90° — start and end of stroke. The 90° figure governs sizing in the powered direction; the spring 0° figure governs the fail-safe direction.

Model2.5 bar3 bar3.5 bar4 bar4.5 bar5 bar5.5 bar6 bar7 bar8 barSpring torque
90° / 0°

VT075S05
5 springs

16.3 / 10.222.2 / 16.028.1 / 21.934.0 / 27.839.8 / 33.745.7 / 39.651.6 / 45.457.5 / 51.369.2 / 63.181.0 / 74.816.9 / 10.7

VT075S06
6 springs

14.2 / 6.820.1 / 12.725.9 / 18.631.8 / 24.437.7 / 30.343.6 / 36.249.4 / 42.155.3 / 47.967.1 / 59.778.8 / 71.420.2 / 12.8

VT075S07
7 springs

–17.9 / 9.323.8 / 15.229.7 / 21.135.6 / 26.941.4 / 32.847.3 / 38.753.2 / 44.664.9 / 56.376.7 / 68.123.6 / 15.0

VT075S08
8 springs

––21.7 / 11.827.5 / 17.733.4 / 23.639.3 / 29.445.2 / 35.351.0 / 41.262.8 / 53.074.5 / 64.727.0 / 17.1

VT075S09
9 springs

–––25.4 / 14.331.3 / 20.237.1 / 26.143.0 / 32.048.9 / 37.860.7 / 49.672.4 / 61.330.3 / 19.3

VT075S10
10 springs

––––29.1 / 16.835.0 / 22.740.9 / 28.646.8 / 34.558.5 / 46.270.3 / 58.033.7 / 21.4

VT075S11
11 springs

–––––32.9 / 19.338.7 / 25.244.6 / 31.156.4 / 42.868.1 / 54.637.1 / 23.5

VT075S12
12 springs

––––––36.6 / 21.842.5 / 27.754.2 / 39.566.0 / 51.240.4 / 25.7


Key Features:

  • Double Acting Operation: Pneumatic control in both open and close directions for precise, positive actuation

  • F05/F07 Mounting: Compatible with ISO 5211 F05 and F07 flange standard

  • NAMUR Standard: Compatible with solenoid valves, limit switches and positioners

  • Extruded Aluminium Body: Lightweight and corrosion resistant construction

  • Dual Independent Travel Stoppers: Precise end-of-travel adjustment

  • Modularised Cartridge Design: Easy maintenance and torque adjustment

  • ATEX & SIL 3 Certified: Bureau Veritas certified for hazardous area applications

Technical Specifications:

ModelVT075S09
Actuation TypeRack & Pinion – Double Acting
Rotation90 Degrees
Mounting FlangeISO 5211 F05 / F07
Body MaterialExtruded Aluminium
Operating Pressure2 to 8 bar
CertificationsATEX, SIL 3 (Bureau Veritas), CE
