V-Tork VT160S10 New Series Spring Return Pneumatic Actuator F10/F12

Product Description

V-Tork VT160S10 New Series Spring Return Pneumatic Actuator F10/F12

Spring Return | Rack & Pinion | 90° Rotation | Extruded Aluminium Body | F10/F12 Mounting

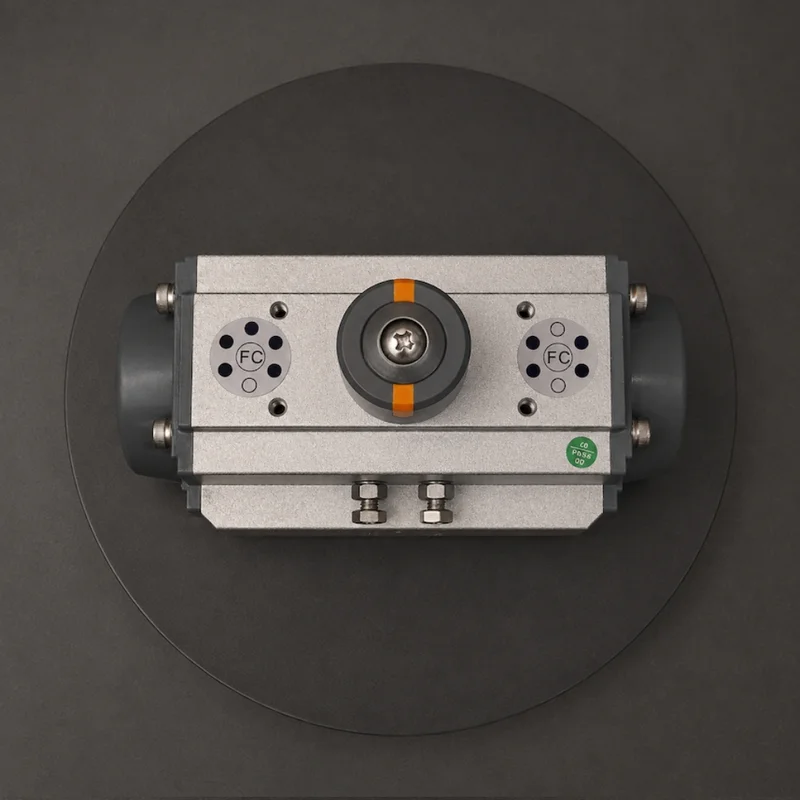

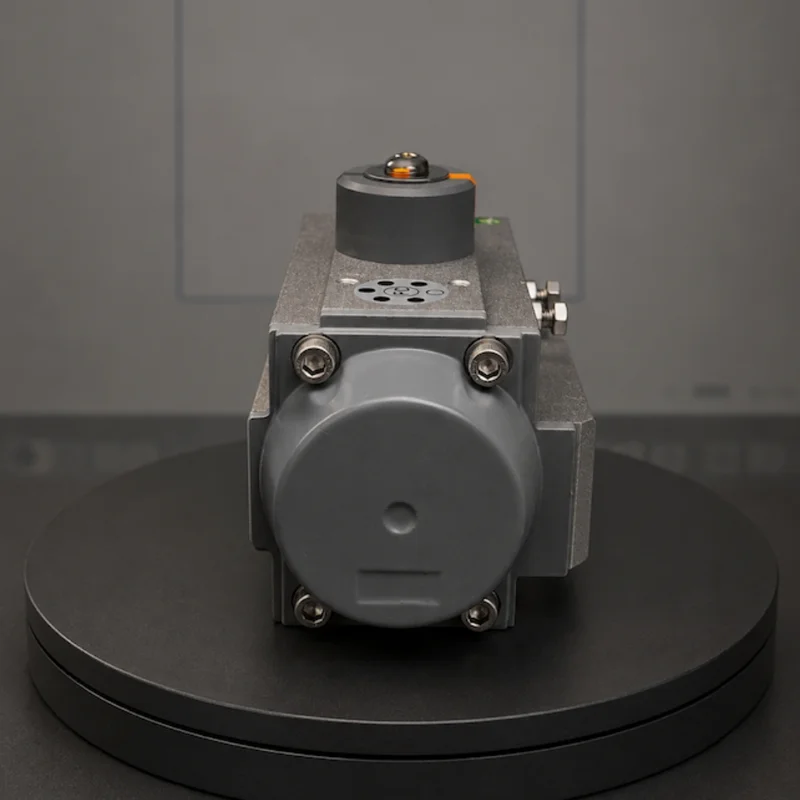

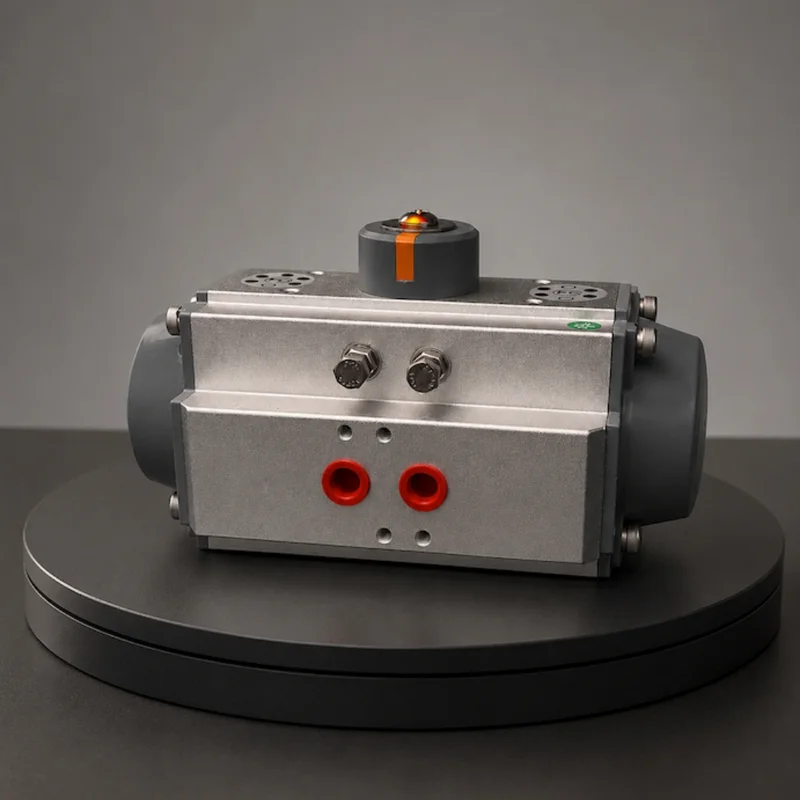

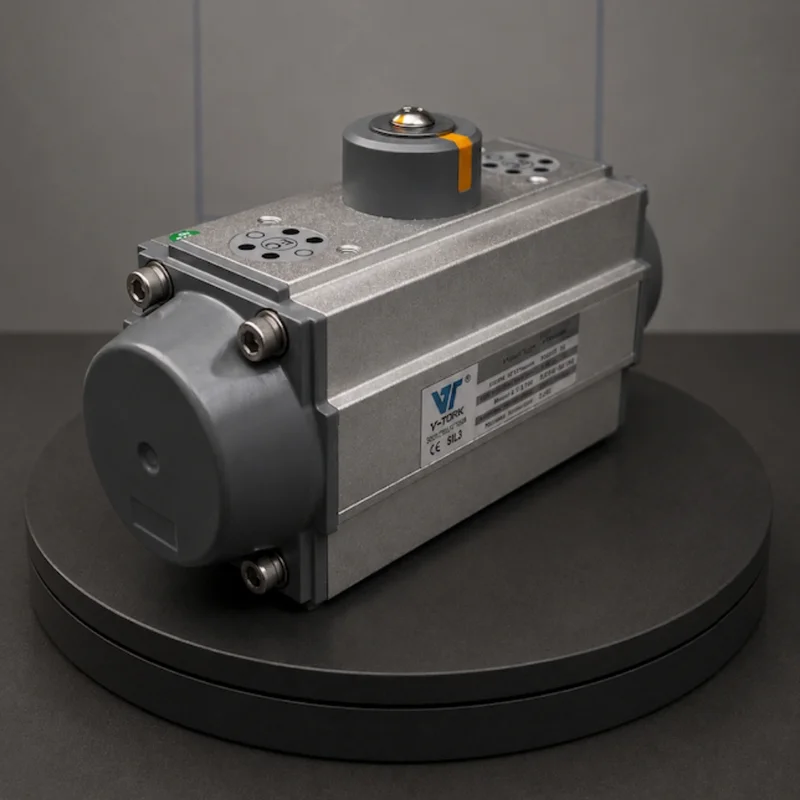

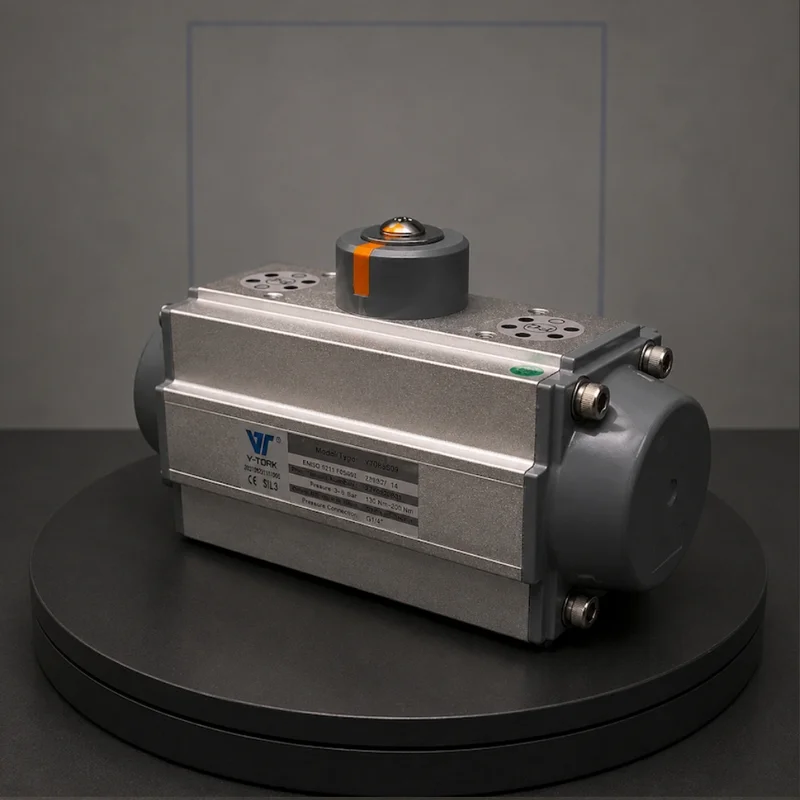

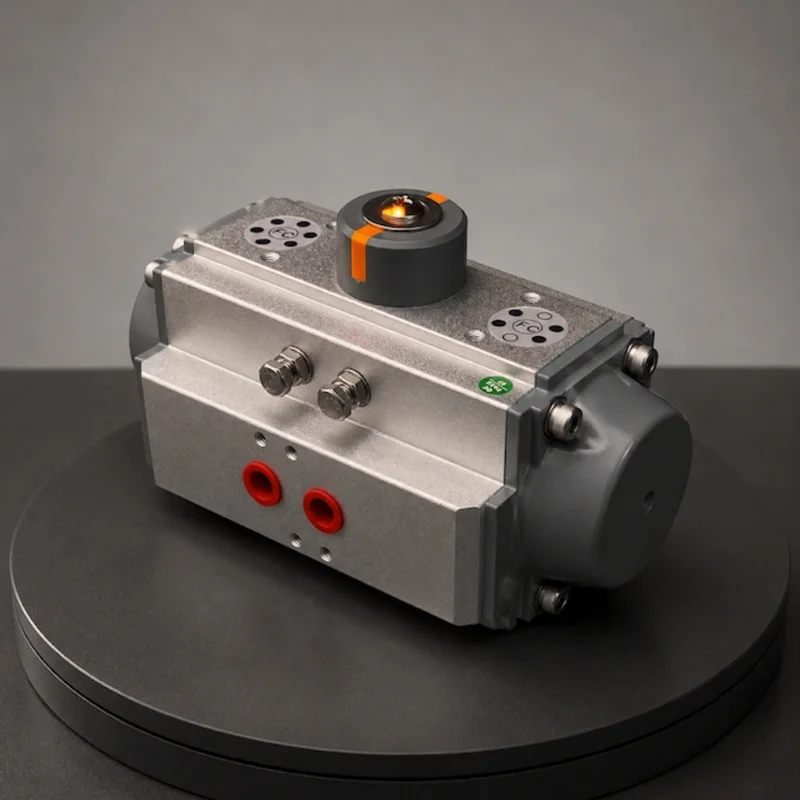

The V-Tork VT160S10 is a high-torque spring return pneumatic actuator from the VT New Series range, designed for fail-safe operation on large-bore quarter-turn valves in demanding industrial environments. With an extruded aluminium body and dual-piston rack and pinion mechanism, it delivers substantial torque output and automatic return to the preset fail-safe position on loss of air supply. Compatible with ISO F10 and F12 mounting flanges, the VTN160S10 is NAMUR compatible for integration with solenoid valves, limit switches and positioners.

Spring return torque output (N·m)

Air stroke torque shown as 0° / 90° — start and end of stroke. The 90° figure governs sizing in the powered direction; the spring 0° figure governs the fail-safe direction.

Key Features:

• Spring Return Operation: Automatic fail-safe return on loss of air pressure

• F10/F12 Mounting: Compatible with ISO 5211 F10 and F12 flange standard

• NAMUR Standard: Compatible with solenoid valves, limit switches and positioners

• Extruded Aluminium Body: Lightweight and corrosion resistant construction

• Dual Independent Travel Stoppers: Precise end-of-travel adjustment

• Modularised Spring Cartridges: Easy maintenance and torque adjustment

Technical Specifications:

Technical Specs
