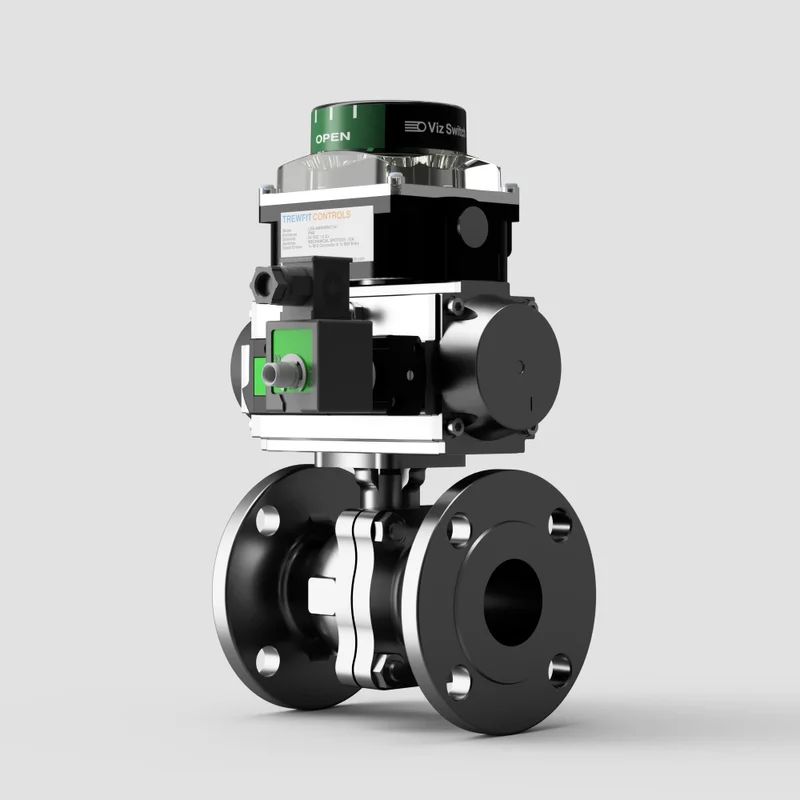

V-Tork Pneumatic Actuated Stainless Steel DIN PN16 Ball Valve / Solenoid Operated with Switchbox

Product Description

The V-Tork Solenoid Operated Stainless Steel DIN PN16 Ball Valve with Switchbox combines a two-piece full bore stainless steel ball valve with a V-Tork pneumatic actuator, solenoid valve and switchbox for automated flow control with position feedback.

The valve body is cast in stainless steel A351 CF8M with DIN PN16 flanged connections, giving good corrosion resistance and a flange standard suited to general industrial and water pipework.

The pneumatic actuator provides quarter-turn operation in either spring return or double acting form, while the solenoid valve controls the actuator air supply electrically in 24VDC, 110VAC or 230VAC. The fitted switchbox provides open and closed position indication, making the assembly suitable for systems where valve status needs to be monitored remotely.

Key Features:

• V-Tork pneumatic actuator

• Two-piece full bore ball valve

• Stainless steel A351 CF8M body

• DIN PN16 flanged connections

• Sizes from 0.5" to 8"

• Spring return and double acting options

• Solenoid valve with 24VDC, 110VAC and 230VAC coil options

• Switchbox for open and closed position feedback

• Suitable for industrial and process systems
