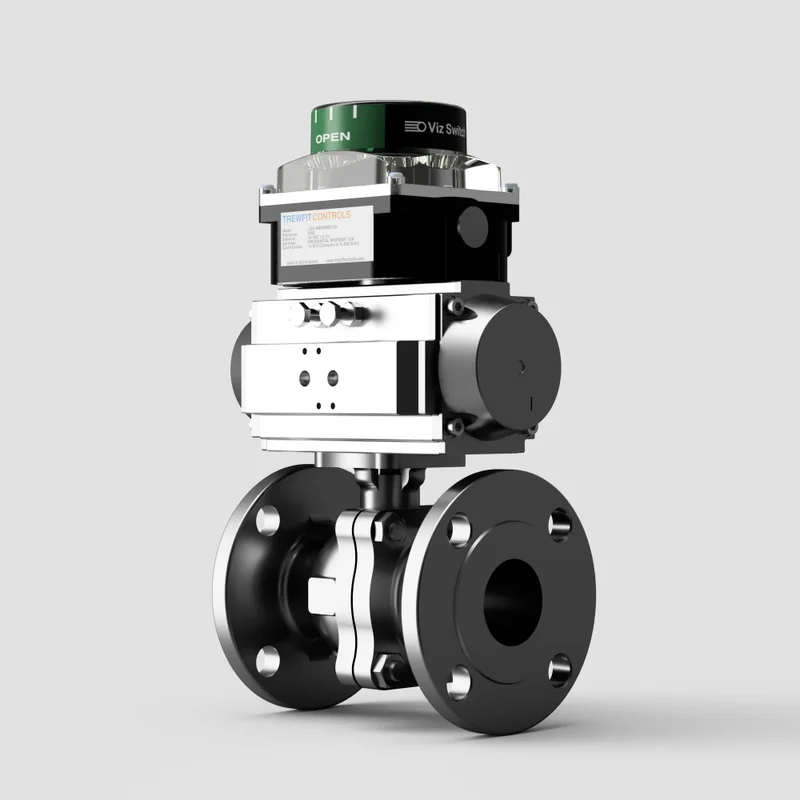

V-Tork Pneumatic Actuated Stainless Steel DIN PN40 Ball Valve / Switchbox

Product Description

The V-Tork Pneumatic Actuated Stainless Steel DIN PN40 Ball Valve with Switchbox combines a two-piece full bore stainless steel ball valve with a V-Tork pneumatic actuator and switchbox for automated flow control with valve position feedback.

The valve body is cast in stainless steel A351 CF8M with DIN PN40 flanged connections, giving good corrosion resistance and a pressure rating suitable for demanding high-pressure duties.

The pneumatic actuator provides quarter-turn operation using a compressed air supply in either spring return or double acting form, while the fitted switchbox provides open and closed position indication for remote monitoring of the valve status.

Key Features:

• V-Tork pneumatic actuator

• Two-piece full bore ball valve

• Stainless steel A351 CF8M body

• DIN PN40 flanged connections

• Spring return and double acting options

• Switchbox for valve position feedback

• Open and closed position indication

• Full bore design for minimal pressure drop

• Suitable for high-pressure industrial and process systems
