V-Tork Pneumatic Actuated Heavy Duty Stainless Steel Ball Valve

Product Description

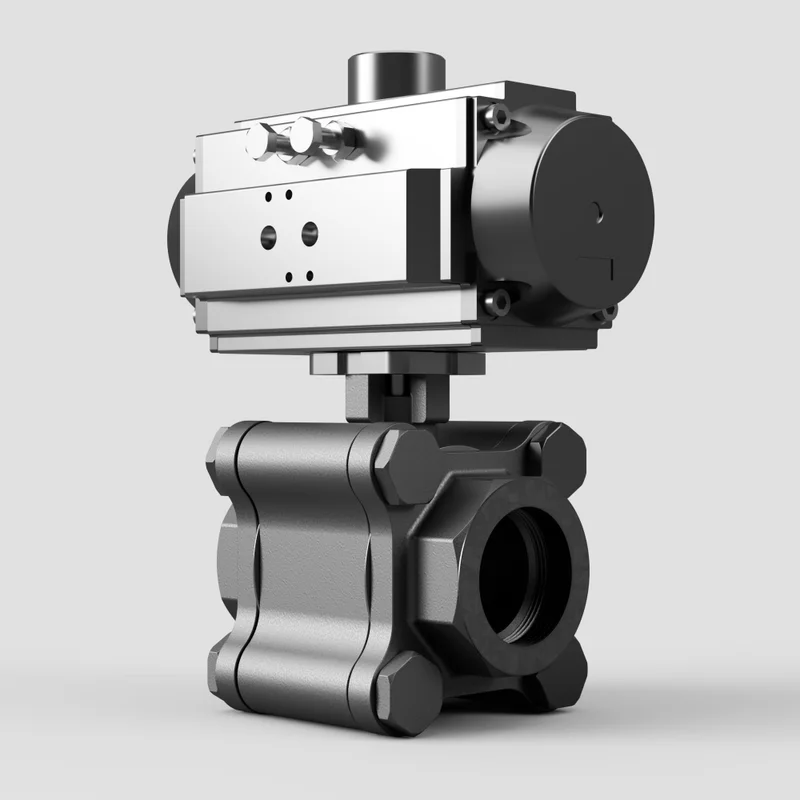

The V-Tork Pneumatic Actuated Heavy Duty Stainless Steel Ball Valve combines a three-piece full bore heavy duty stainless steel ball valve with a V-Tork pneumatic actuator for automated flow control in demanding industrial and process duties.

The valve body is cast in stainless steel A351 CF8M and is available with screwed BSP, screwed NPT, butt weld or socket weld end connections. The heavy duty three-piece construction allows the centre section to be removed for seat and seal replacement without taking the end connections out of the line.

The pneumatic actuator provides fast quarter-turn operation using a compressed air supply and is available in spring return or double acting form, making the assembly suitable for applications where remote or automated isolation is required.

Key Features:

• V-Tork pneumatic actuator

• Heavy duty three-piece full bore ball valve

• Stainless steel A351 CF8M body

• Screwed BSP, screwed NPT, butt weld and socket weld ends

• In-line serviceable centre section

• Spring return and double acting options

• Automated quarter-turn operation

• Suitable for compatible liquids and gases

• Suitable for demanding industrial and process systems
