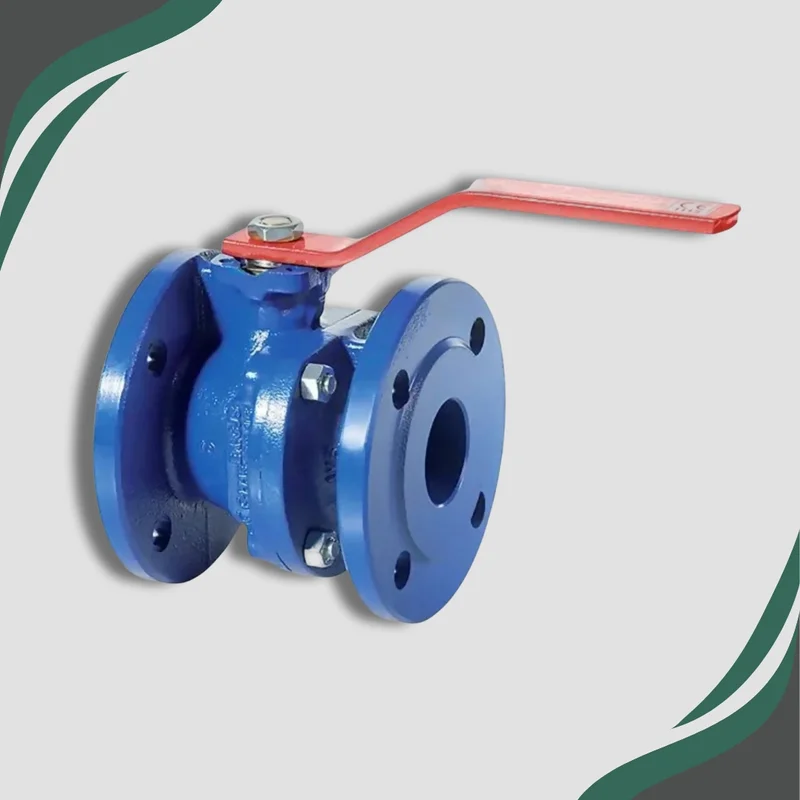

BV-5561 Ductile Iron Ball Valve - Flanged ANSI 150 - Direct Mount

Product Description

BV-5561 Ductile Iron Ball Valve – Flanged ANSI 150 – Direct Mount

The BV-5561 is a flanged ductile iron ball valve with ANSI Class 150 flange drilling, for pipework built to ASME dimensions. The body has an ISO 5211 direct mount pad, so a pneumatic or electric actuator can be fitted without a bracket or coupling.

Inside, a 304 stainless steel ball and stem run in reinforced PTFE (RPTFE) seats, with Viton O-rings on the stem. The valve suits water, compressed air, oils and other non-aggressive media within its pressure and temperature limits.

Key specifications

• Size range: DN15 to DN200 (1/2" to 8")
• End connections: Flanged ANSI Class 150
• Pressure rating: PN16
• Temperature range: -10°C to 100°C
• Body: Ductile iron
• Ball and stem: 304 stainless steel
• Seats: RPTFE
• O-rings: Viton
• Top flange: ISO 5211 direct mount

Note that ANSI 150 and PN16 flanges are not interchangeable. If your pipework is PN16 drilled, choose the BV-5550 PN16 ductile iron ball valve instead. Our guide to PN16, PN40 and ANSI 150 ball valves explains the differences.
