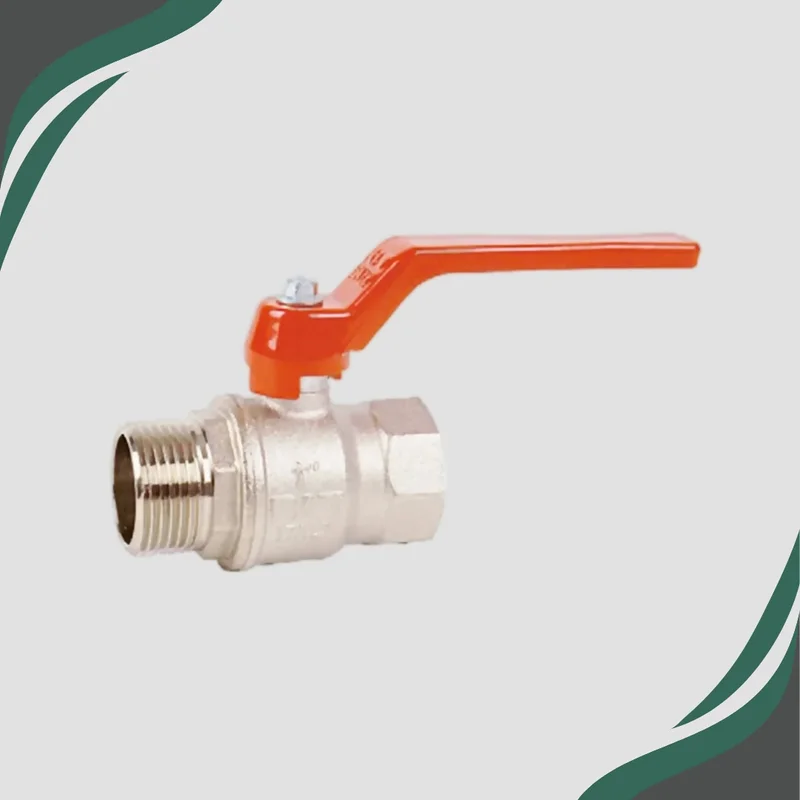

BV-4330 Brass Ball Valve – Standard Pattern – Male x Female BSPP
The BV-4330 Brass Ball Valve – Standard Pattern is a high-quality and reliable flow isolation valve designed for a wide range of domestic, commercial, and industrial systems. Constructed with a nickel-plated brass body, this valve delivers superior corrosion resistance and long-term durability, even in challenging environments. Its male x female BSPP threaded ends provide flexible installation options, making it ideal for systems requiring easy connection to existing pipework.
Designed for efficient shutoff and flow control, the BV-4330 features a quarter-turn lever handle for quick, manual operation and a full bore design to maximise flow capacity and reduce pressure loss. The pressure rating varies by size, supporting up to PN64 for smaller sizes, offering strength and reliability across a broad application range including water systems, compressed air, oil circuits, and heating systems.
Key Features:
-
Size Range: ¼" to 4" – suited for small to large pipework systems
-
Body Material: Brass with Nickel Plating – enhanced corrosion resistance and surface protection
-
Body Type: Standard Pattern – compact and easy to install
-
End Connections: BSPP Male x Female – provides installation flexibility in threaded systems
-
Operation: Lever Operated – quarter-turn manual control
-
Bore Type: Full Bore – supports unrestricted flow and minimal pressure drop
-
Pressure Ratings by Size:
-
PN64 (¼" – ?")
-
PN40 (½")
-
PN32 (¾" – 1")
-
PN25 (1¼" – 2½")
-
PN16 (3" – 4")
-
Applications: Water, air, heating systems, oil, and general utility services
-
Performance: Reliable sealing and smooth operation with minimal maintenance
The BV-4330 combines strong performance, flexible installation, and corrosion-resistant design—making it a trusted solution for a wide range of general-purpose applications.
