3-Way Full Bore BSP-NPT Actuated Elomatic Ball Valves

Three-way ball valves offer versatile applications, serving as diverter valves to redirect flow towards one or two alternative ports. They excel as input selectors, ensuring an outlet is supplied from a single-sided source. Elomatic Actuators have successfully undergone a 1,000-hour salt spray test without any functional damage. This attests to the durability of our products, enabling their use in harsh environments for extended periods compared to offerings from other manufacturers. The BV-L5300 & 5400 Full Bore 3-Way Ball Valves are silicone-free, making them suitable for applications involving oil-based paint products. This guarantees that the valve won't introduce any contamination to the medium, preserving the integrity of the end finish.

Key Features

Key features and benefits of BV-L5300EL & BV-L5400EL Actuated Ball Valves.
1

Key Features

Introducing the latest pneumatic actuators that eliminate concerns about malfunction. The EL-O-Matic F Series comes with TÜV's SIL 3 rating approval, making it ideal for critical safety applications such as medical equipment and industrial machinery.
2

Key Features

For heating and hot water systems, choose from our 3-Way Ball Valves available in L Port or T Port configurations to regulate temperature. These valves efficiently manage liquid flow, directing it in a specific direction or diverting it along an alternative path.
3

Key Features

Opt for the EL-O-Matic Pneumatic Actuator as a cost-effective alternative to pricier electric actuators, offering comparable functionality at a fraction of the price. These actuators operate notably faster than electric units of similar size.

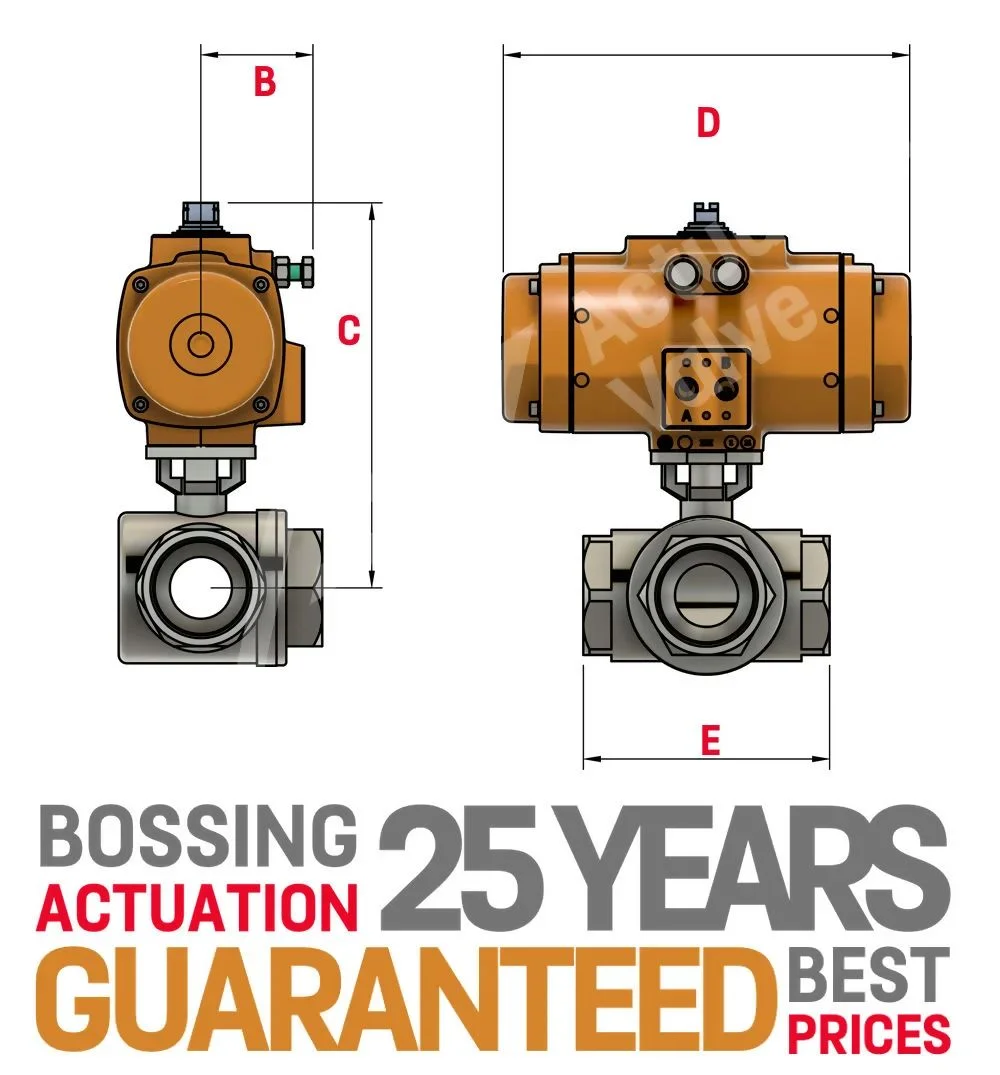

Full Bore 3-Way Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" 96.00 154.00 166.00 60.00 123.00 103.00 79.00
3/8" 96.00 154.00 166.00 60.00 123.00 103.00 79.00
1/2" 96.00 181.00 192.00 83.00 160.00 166.00 88.00
3/4" 96.00 191.50 192.00 83.00 170.50 166.00 108.00
1" 96.00 195.00 192.00 83.00 174.00 166.00 124.00
1 1/4" 96.00 205.50 192.00 83.00 184.50 166.00 135.00
1 1/2" 115.50 233.80 247.00 104.00 226.80 217.00 164.00
2" TBA TBA TBA TBA TBA TBA TBA
2.5" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

Full Bore 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1

FAQs

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.
Potentially. Contact us so we can discuss potential options.
No unfortunately. We do not offer that level of customisation.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Need More Dimensions?

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.

Elomatic Actuator Videos

3-Way Valve Configuration

Multiple valve configurations are accessible to match your specific application needs. You can either request a configurator or contact us directly, and our experts in 3-Way valves will guide you through the available options.

TopWorx Limit Switch Box

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
