The Stainless Steel Ball Valves are cost-effective, dependable, and user-friendly. They are equipped with an FDA-approved TFM seat, which is also WRAS certified, making them suitable for sanitary applications (please verify). These valves are perfect for both commercial and residential purposes. They come with threaded connections in NPT & BSP, making them versatile for various applications requiring flow control. They fully adhere to safety standards, ensuring workplace safety without straining your budget. The Actreg actuator design incorporates features that enable usage under challenging conditions, such as extreme temperatures. This includes special FKM o’rings for high temperatures (150ºC) and Silicone o’rings for operation in temperatures as low as -55Cº.

Shop Help Me

Key features and benefits of BV-L2000AC Actuated Ball Valves.

Key Features

Actreg actuators provide NAMUR mounting compatibility (VDE/VDI 3845), facilitating seamless integration with supplementary ancillary products such as solenoid valves and valve position monitors that might be essential for specific application or operational requirements. BallValve is also capable of furnishing a variety of accessories for your actuator.

Key Features

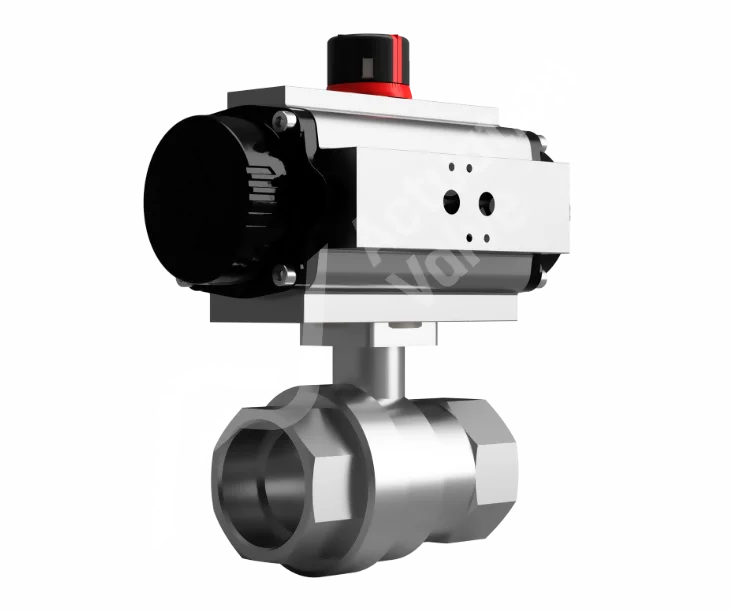

The BV-L2000, a two-piece full-bore stainless steel ball valve, boasts a compact body design that occupies less space within the pipeline. Additionally, this design leads to a reduction in both the overall weight and the cost of the actuated valve package when compared to the three-piece ball valves.

Key Features

By employing dual flange drillings and providing multiple drive inserts, the Actreg pneumatic actuator offers enhanced versatility when it comes to mounting on ball and butterfly valves, especially our TTV Butterfly Valve. This eliminates the need for additional mounting brackets, resulting in cost savings, reduced weight, and shorter lead times.

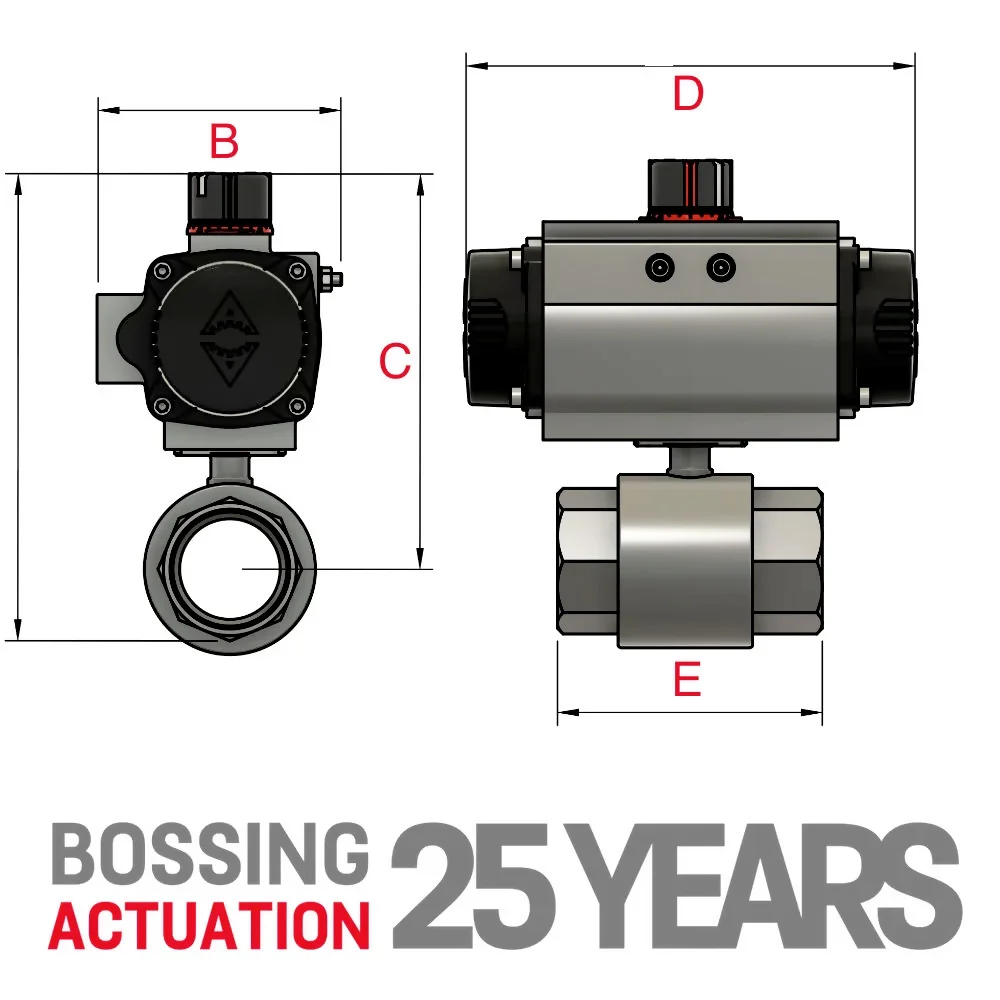

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	138.50	163.00	67.00	81.00	138.50	145.00	67.00
3/8"	81.00	138.50	163.00	67.00	81.00	138.50	145.00	67.00
1/2"	81.00	138.50	163.00	67.00	81.00	138.50	145.00	67.00
3/4"	81.00	145.00	163.00	70.40	81.00	145.00	145.00	70.40
1"	96.00	173.00	195.00	85.00	96.00	173.00	158.00	85.00
1 1/4"	96.00	177.50	195.00	94.00	96.00	177.50	158.00	94.00
1 1/2"	116.00	208.50	217.00	105.00	116.00	208.50	177.00	105.00
2"	116.00	215.50	217.00	125.00	116.00	215.50	177.00	125.00
2 1/2"	127.00	247.00	258.00	155.00	127.00	247.00	196.00	155.00
3"	140.00	274.00	299.00	173.00	140.00	274.00	225.00	173.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10
Pressure Rating:	1000 PSI

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series serves as an Electro-Pneumatic control device enabling the Actuator to gradually modify the Valve's positioning between fully open and fully closed states. There are variations of this product designed for both spring return and double-acting configurations, complete with feedback and safety features. Feel free to reach out to our team today to learn how the V100E can address your specific process needs.
